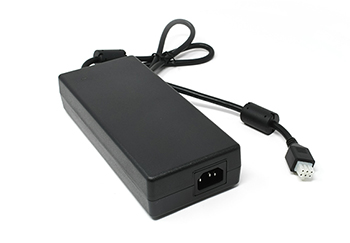

Medical Desktop Power Supply 15V 220 Watt
Medical Desktop Power Supply 15V 220 Watt
| Part | Power (Watts) | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | No Load Power Consumption | Region Utilized | Voltage - Input [Min] | Voltage - Input [Max] | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output (Max) [Max] | Input Connector | Input Type | Standard Number | Voltage - Output | Form | Output Connector | Output Connector | Cord Length | Cord Length | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TT Electronics/BI | 250 W | 41.5 mm | 204 mm | 87.6 mm | 1.63 in | 3.45 " | 8.03 in | 150 mW | International | 80 VAC | 264 VAC | Medical | -20 ░C | 60 °C | 5.21 A | IEC 320-C14 | Cord (Sold Separately) | 60601-1 | 48 V | Desktop (Class I) | Rectangular | 6 Position | 36 in | 0.91 m | Level VI |
 TT Electronics/BI | 250 W | 41.5 mm | 204 mm | 87.6 mm | 1.63 in | 3.45 " | 8.03 in | 150 mW | International | 80 VAC | 264 VAC | Medical | -20 ░C | 60 °C | 10.42 A | IEC 320-C14 | Cord (Sold Separately) | 60601-1 | 24 V | Desktop (Class I) | Rectangular | 6 Position | 36 in | 0.91 m | Level VI |
TT Electronics/BI | 220 W | 41.5 mm | 204 mm | 87.6 mm | 1.63 in | 3.45 " | 8.03 in | 150 mW | International | 80 VAC | 264 VAC | Medical | -20 ░C | 60 °C | 14.67 A | IEC 320-C14 | Cord (Sold Separately) | 60601-1 | 15 V | Desktop (Class I) | Rectangular 8 Position | 36 in | 0.91 m | Level VI | |
 TT Electronics/BI | 220 W | 41.5 mm | 204 mm | 87.6 mm | 1.63 in | 3.45 " | 8.03 in | 150 mW | International | 80 VAC | 264 VAC | Medical | -20 ░C | 60 °C | 18.34 A | IEC 320-C14 | Cord | 60601-1 | 12 V | Desktop (Class I) | Rectangular 8 Position | 36 in | 0.91 m | Level VI |
