FR Series

Manufacturer: Panasonic Electronic Components

Catalog

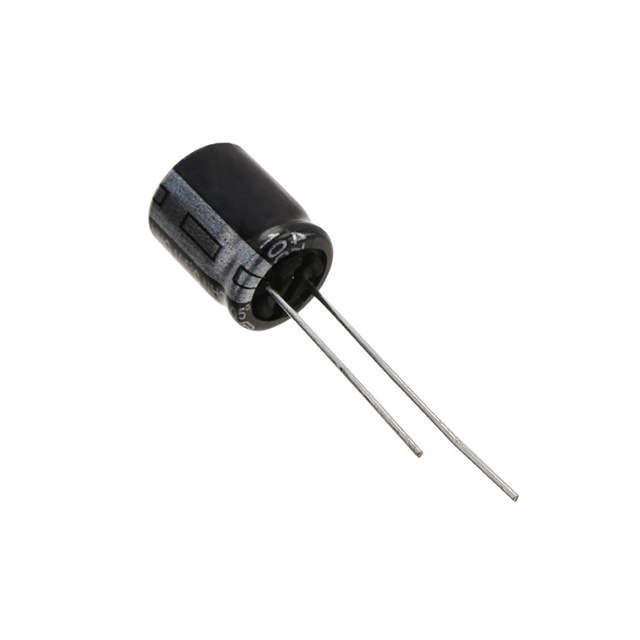

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED 50VDC 820UF 16X20MM LS7.5MM

Part	Ripple Current @ High Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Polarization	Impedance	Voltage - Rated	Lifetime @ Temp.	Tolerance	Ripple Current @ Low Frequency	Applications	Mounting Type	Lead Spacing	Lead Spacing	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]
Panasonic Electronic Components EEU-FR1H821S	2.87 A	0.63 in	16 mm	Polar	19 mOhms	50 VDC	10000 Hrs	20 %	2.153 A	General Purpose	Through Hole	0.295 in	7.5 mm	820 µF	-40 C	105 ░C	0.866 in	22 mm	Can Radial
Panasonic Electronic Components EEU-FR2A101	1.5 A	0.394 in	10 mm	Polar	84 mOhms	100 V	10000 Hrs	20 %	1.05 A	General Purpose	Through Hole	0.197 "	5 mm	100 µF	-40 C	105 ░C	0.866 in	22 mm	Can Radial
Panasonic Electronic Components EEU-FR1V681	2180 mA	0.394 in	10 mm	Polar	20 mOhms	35 V	10000 Hrs	20 %	1.635 A	General Purpose	Through Hole	0.197 "	5 mm	680 µF	-40 C	105 ░C	0.866 in	22 mm	Can Radial
Panasonic Electronic Components EEU-FR1C101	280 mA	0.197 in	5 mm	Polar	300 mOhms	16 V	5000 Hrs	20 %	196 mA	General Purpose	Through Hole	0.079 in	2 mm	100 µF	-40 C	105 ░C			Can Radial	0.492 in	12.5 mm
Panasonic Electronic Components EEU-FR1A152B	1.79 A	0.394 in	10 mm	Polar	28 mOhms	10 V	8000 Hrs	20 %	1.432 A	General Purpose	Through Hole	0.197 "	5 mm	1.5 mF	-40 C	105 ░C			Can Radial			17.5 mm	0.689 in
Panasonic Electronic Components EEU-FR1V271L	1.24 A	0.315 in	8 mm	Polar	41 mOhms	35 V	8000 Hrs	20 %	868 mA	General Purpose	Through Hole	0.138 in	3.5 mm	270 µF	-40 C	105 ░C			Can Radial				16.5 mm	0.65 in
Panasonic Electronic Components EEU-FR1H100H	250 mA	0.197 in	5 mm	Polar		50 VDC	5000 Hrs	20 %	137.5 mA	General Purpose	Through Hole	0.079 in	2 mm	10 µF	-40 C	105 ░C			Can Radial	0.492 in	12.5 mm
Panasonic Electronic Components EEU-FR1A101B	280 mA	0.197 in	5 mm	Polar	300 mOhms	10 V	5000 Hrs	20 %	196 mA	General Purpose	Through Hole	0.197 "	5 mm	100 µF	-40 C	105 ░C			Can Radial	0.492 in	12.5 mm
Panasonic Electronic Components EEU-FR1E221B	950 mA	0.315 in	8 mm	Polar	56 mOhms	25 VDC	6000 Hrs	20 %	665 mA	General Purpose	Through Hole	0.197 "	5 mm	220 µF	-40 C	105 ░C			Can Radial				13 mm	0.512 "
Panasonic Electronic Components EEU-FR1C562B	3.82 A	0.63 in	16 mm	Polar	14 mOhms	16 V	10000 Hrs	20 %	3.056 A	General Purpose	Through Hole	0.295 in	7.5 mm	5.6 mF	-40 C	105 ░C			Can Radial	27 mm					1.063 in
