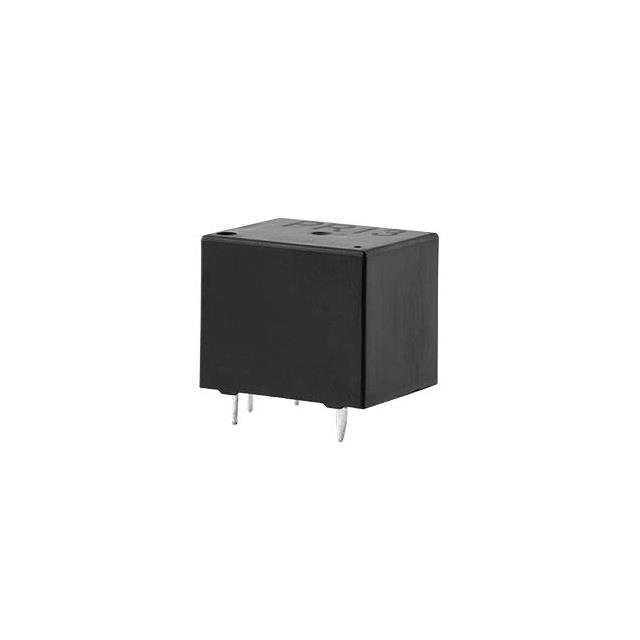

PR13-24V Series
Manufacturer: Same Sky (Formerly CUI Devices)
Beta
⌘K
RELAY GEN PURPOSE SPDT 10A 24V
| Part | Relay Type | Release Time | Load - Max Switching | Contact Form | Must Release Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Coil Current | Must Operate Voltage | Contact Rating (Current) | Coil Voltage | Operate Time | Termination Style | Switching Voltage [Max] | Contact Material | Mounting Type | Coil Type | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Same Sky (Formerly CUI Devices) | General Purpose | 5 ms | 300 W 2500 VA | SPDT (1 Form C) | 2.4 VDC | 85 °C | -40 C | 18.8 mA | 16.8 VDC | 10 A | 24 VDC | 10 ms | PC Pin | 30 VDC 250 VAC | Silver Alloy | Through Hole | Non Latching | |
Same Sky (Formerly CUI Devices) | General Purpose | 5 ms | 300 W 2500 VA | SPST-NO (1 Form A) | 2.4 VDC | 85 °C | -40 C | 18.75 mA | 16.8 VDC | 10 A | 24 VDC | 10 ms | PC Pin | 30 VDC 250 VAC | Silver Alloy | Through Hole | Non Latching | |
Same Sky (Formerly CUI Devices) | General Purpose | 5 ms | 300 W 2500 VA | SPDT (1 Form C) | 2.4 VDC | 85 °C | -40 C | 18.8 mA | 16.8 VDC | 10 A | 24 VDC | 10 ms | PC Pin | 30 VDC 250 VAC | Silver Alloy | Through Hole | Non Latching | 1280 Ohms |
Same Sky (Formerly CUI Devices) | General Purpose | 5 ms | 300 W 2500 VA | SPST-NO (1 Form A) | 2.4 VDC | 85 °C | -40 C | 18.75 mA | 16.8 VDC | 10 A | 24 VDC | 10 ms | PC Pin | 30 VDC 250 VAC | Silver Alloy | Through Hole | Non Latching | 1280 Ohms |
