R16440 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

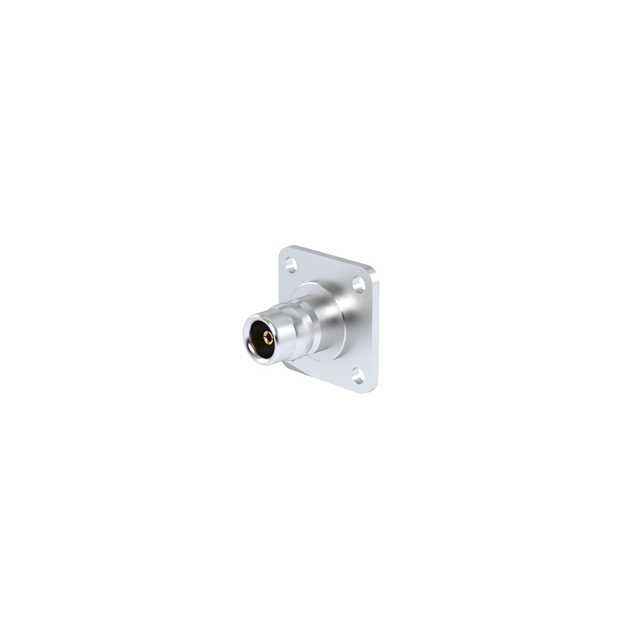

QN / 25.4MM SQUARE FLANGE RECEPT
| Part | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Body Finish | Center Contact Plating | Voltage Rating | Impedance | Fastening Type | Connector Type | Center Contact Material | Connector Style | Mounting Type | Number of Ports | Housing Color | Contact Termination | Shield Termination | Mounting Feature | Ingress Protection | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | -55 C | 125 °C | Brass | White Bronze | Gold | 1000 VDC | 50 Ohms | Snap-On | Receptacle Female Socket | Beryllium Copper | QN | Panel Mount | 1 | Silver | Solder Cup | Solder | Flange | IP68 - Dust Tight Waterproof | 6000 MHz |
