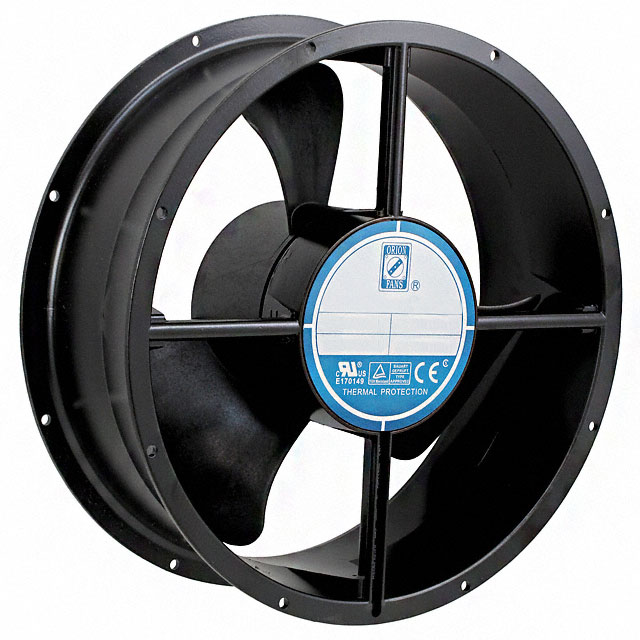

OA254AP Series

Catalog

AXIAL FAN, AC, OA254AP-SALTFOG SERIES, BALL BEARING, CIRCULAR, 550CFM, 55DB, 115V, 33W, 1650RPM

Part	Current Rating (Amps)	Material - Frame	Air Flow	Air Flow	Lifetime @ Temp.	Material - Blade	Fan Type	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Bearing Type	Noise	RPM	Static Pressure	Static Pressure	Size / Dimension	Size / Dimension [diameter]	Features	Width [y]	Voltage - Rated	Weight [custom]	Weight [custom]	Termination	Voltage Range [Min]	Voltage Range [Max]	Weight [custom]	Weight [custom]	Termination
ORION FANS OA254AP-11-1TBSF	0.29 A	Aluminum	550 CFM	15.4 m³/min	40 °C 60000 Hrs	Polybutylene Terephthalate (PBT)	Tubeaxial	33 W	80 °C	-20 ░C	cURus TUV	Ball	55 dB(A)	1650 RPM	99.6 Pa	0.4 in H2O	Round	10 in	Capacitor Salt Fog Rated Thermal Overload Protector (TOP)	89 mm	115 VAC	2 kg	4.3 lbs	2
ORION FANS OA254AP-11-1TB	0.29 A	Aluminum	547 CFM	15.32 m³/min	40 °C 60000 Hrs	Polybutylene Terephthalate (PBT)	Tubeaxial	35 W	80 °C	-20 ░C	cURus TUV	Ball	55 dB(A)	1650 RPM	97.1 Pa	0.39 in H2O	Round	10 in	Capacitor Thermal Overload Protector (TOP)	89 mm	115 VAC			2	80 VAC	130 VAC	1.9 kg	4.2 lbs
ORION FANS OA254AP-22-1TBSF	140 mA	Aluminum	550 CFM	15.4 m³/min	40 °C 60000 Hrs	Polybutylene Terephthalate (PBT)	Tubeaxial	33 W	80 °C	-20 ░C	cURus TUV	Ball	55 dB(A)	1650 RPM	99.6 Pa	0.4 in H2O	Round	10 in	Capacitor Salt Fog Rated Thermal Overload Protector (TOP)	89 mm	230 VAC	2 kg	4.3 lbs	2
ORION FANS OA254AP-22-1WB	140 mA	Aluminum	547 CFM	15.32 m³/min	40 °C 60000 Hrs	Polybutylene Terephthalate (PBT)	Tubeaxial	35 W	80 °C	-20 ░C	cURus TUV	Ball	55 dB(A)	1650 RPM	97.1 Pa	0.39 in H2O	Round	10 in	Capacitor Thermal Overload Protector (TOP)	89 mm	230 VAC				160 VAC	260 VAC	1.9 kg	4.2 lbs	2 Wire Leads
ORION FANS OA254AP-22-1TB	140 mA	Aluminum	547 CFM	15.32 m³/min	40 °C 60000 Hrs	Polybutylene Terephthalate (PBT)	Tubeaxial	35 W	80 °C	-20 ░C	cURus TUV	Ball	55 dB(A)	1650 RPM	97.1 Pa	0.39 in H2O	Round	10 in	Capacitor Thermal Overload Protector (TOP)	89 mm	230 VAC			2	160 VAC	260 VAC	1.9 kg	4.2 lbs
ORION FANS OA254AP-11-1WB	0.29 A	Aluminum	547 CFM	15.32 m³/min	40 °C 60000 Hrs	Polybutylene Terephthalate (PBT)	Tubeaxial	35 W	80 °C	-20 ░C	cURus TUV	Ball	55 dB(A)	1650 RPM	97.1 Pa	0.39 in H2O	Round	10 in	Capacitor Thermal Overload Protector (TOP)	89 mm	115 VAC				80 VAC	130 VAC	1.9 kg	4.2 lbs	2 Wire Leads
