EP II (Economy Power) Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
HEADERS & WIRE HOUSINGS 7POS RTNR W/LATCH
| Part | Fastening Type | Pitch | Pitch | Color | Number of Positions | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Number of Rows | Insulation Material | Mounting Type | Contact Termination | Contact Finish - Post | Style | Insulation Height | Insulation Height | Shrouding | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Material Flammability Rating | Contact Length - Post | Contact Length - Post | Overall Contact Length | Overall Contact Length | Termination | Number of Positions Loaded | Features | Contact Material | Pitch - Mating | Pitch - Mating | Voltage Rating | Current Rating (Amps) | Contact Shape | Contact Length - Mating | Contact Length - Mating | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

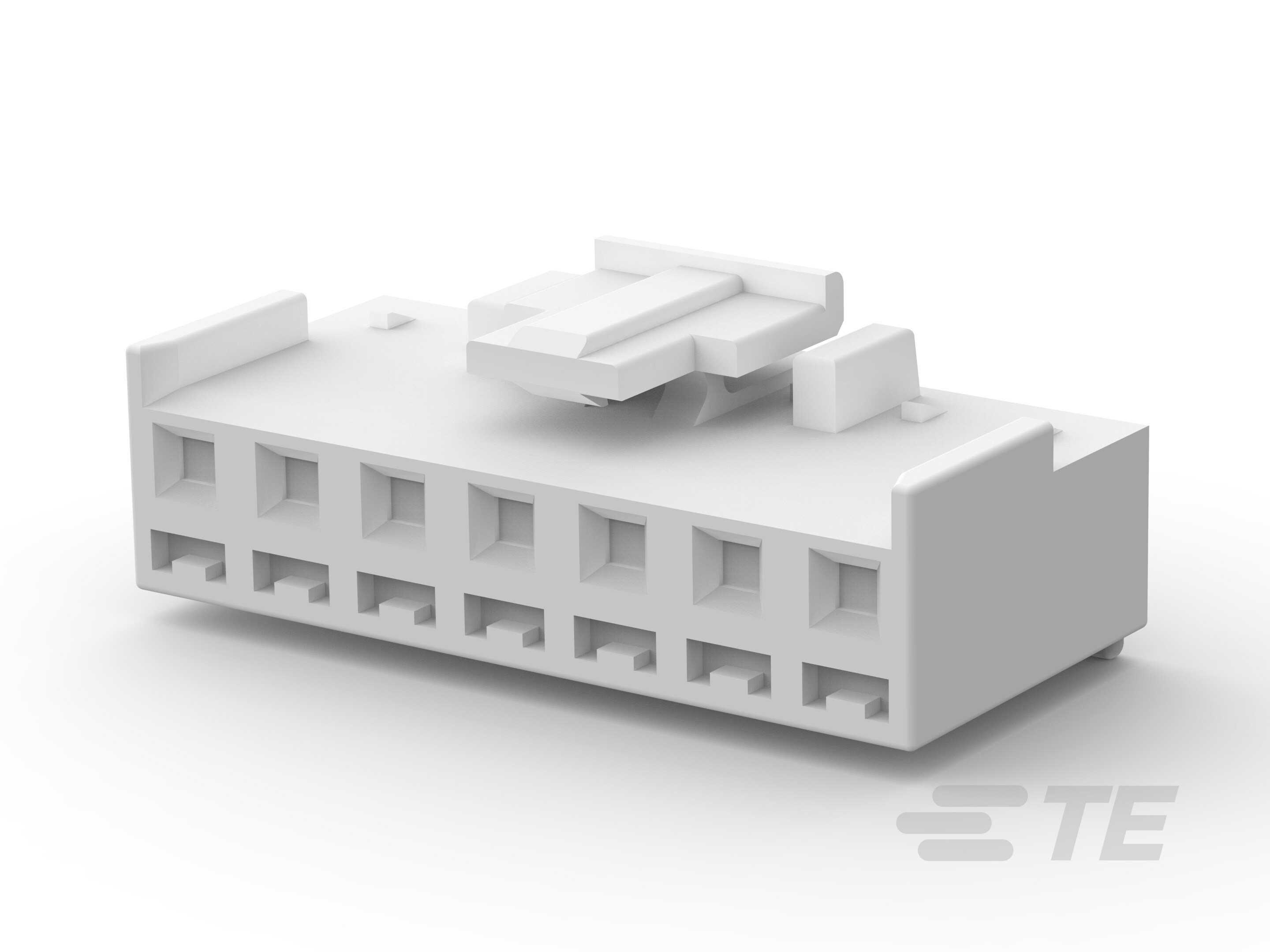

 TE Connectivity AMP Connectors | Latch Holder | 3.96 mm | 0.156 in | Natural | 7 | Female Socket | -55 C | 105 ░C | Receptacle | 1 | Nylon Polyamide (PA) | Free Hanging (In-Line) | Crimp | ||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Locking Ramp | 4 | Male Pin | -25 °C | 105 ░C | Header | 1 | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | Tin | Board to Cable/Wire | 0.472 " | 12 mm | Shrouded - 4 Wall | 39.4 µin | 1 µm | UL94 V-0 | 0.142 in | 3.6 mm | 14.4 mm | 0.567 in | Solder | All | Board Guide | Brass | 3.96 mm | 0.156 in | 250 VAC | 7.5 A | Square | 7.77 mm | 0.306 in | White |
