OSTTH12 Series

Catalog

TERM BLOCK PLUG 12POS 3.5MM

Part	Wire Strip Length [Min]	Wire Strip Length [Max]	Material Flammability Rating	Housing Material	Contact Material	Torque - Screw	Torque - Screw	Type	Pitch	Pitch	Features	Voltage - UL	Contact Mating Finish	Mounting Type	Termination Style	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Number of Levels	Number of Positions	Positions Per Level	Operating Temperature [Max]	Operating Temperature [Min]	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Color
On Shore Technology Inc. OSTTH122150	5 mm	6 mm	UL94 V-0	Brass	Brass	1.7 Lb-In	0.2 Nm	Plug for Unshrouded Header	3.5 mm	0.138 "	Interlocking (Side)	300 V	Nickel	Free Hanging (In-Line)	Screw	28 AWG	16 AWG	1	12	12	115 °C	-40 C

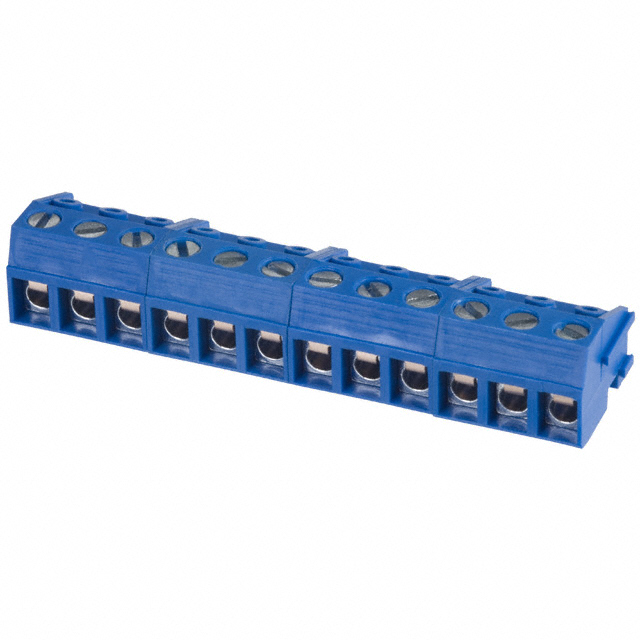

On Shore Technology Inc. OSTTH120160	5 mm	6 mm	UL94 V-0	Brass	Brass	3.5 Lb-In	0.4 Nm	Plug for Unshrouded Header	5 mm	0.197 in	Interlocking (Side)	300 V	Nickel	Free Hanging (In-Line)	Screw	22 AWG	14 AWG	1	12	12	115 °C	-40 C	1.5 mm˛	0.34 mm˛	0.34 mm²	1.5 mm²	Blue
