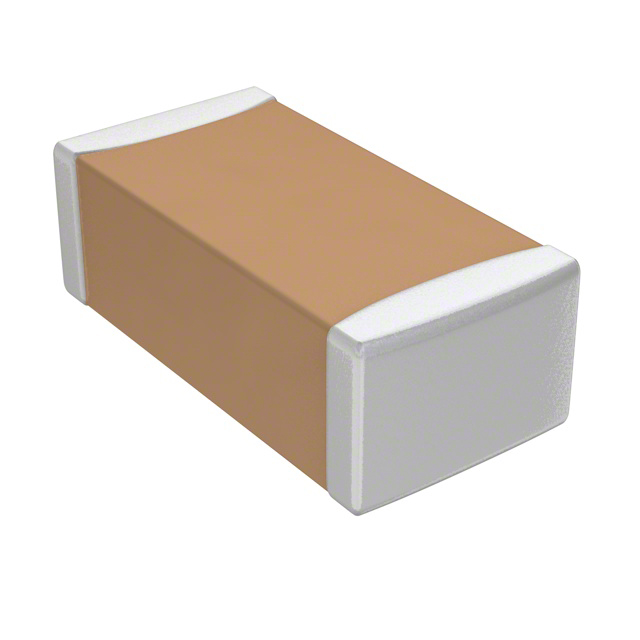

CGB Series

Catalog

MULTILAYER CERAMIC CAPACITORS MLCC - SMD/SMT RECOMMENDED ALT 810-CGB3B3X5R1A225KB

Part	Package / Case	Package / Case	Capacitance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Tolerance	Temperature Coefficient	Features	Thickness (Max)	Thickness (Max) [Max]	Applications	Size / Dimension [y]
TDK Corporation CGB3B3JB1A225K055AB	1608 Metric	0603	2.2 µF	0.031 in	1.6 mm	0.8 mm	0.063 "	MLCC Surface Mount	85 °C	-25 °C	10 V	10 %	JB	Low Profile	0.55 mm	0.022 in	General Purpose
TDK Corporation CGB4B1X5R1E225K055AC		0805	2.2 µF	0.049 "	2 mm		0.079 in	MLCC Surface Mount	85 °C	-55 C	25 VDC	10 %	X5R	Low Profile	0.55 mm	0.022 in	General Purpose	1.25 mm
TDK Corporation CGB2A1X7S0G474K033BC		0402 (1005 Metric)	0.47 µF	0.02 in	1 mm		0.039 "	MLCC Surface Mount	125 °C	-55 C	4 V	10 %	X7S	Low Profile	0.33 mm	0.013 "	General Purpose	0.5 mm
