XPC Series

Catalog

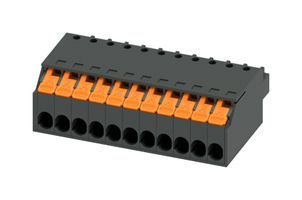

TERMINAL BLOCK, PLUGGABLE, 11POS, 16AWG ROHS COMPLIANT: YES

Part	Insulation Height [z]	Insulation Height [z]	Housing Material	Material Flammability Rating	Contact Material	Wire Strip Length	Type	Color	Plug Wire Entry	Voltage - IEC	Pitch	Pitch	Contact Mating Finish	Features	Mounting Type	Number of Positions	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Termination Style	Positions Per Level	Operating Temperature [Min]	Operating Temperature [Max]	Current - IEC	Number of Levels
Phoenix Contact 1464115	0.491 in	12.46 mm	Polyamide (PA) Nylon	UL94 V-0	Copper Alloy	10 mm	Plug Female Sockets	Black	180 °	160 V	3.5 mm	0.138 "	Tin	Lever Actuated	Free Hanging (In-Line)	11	0.34 mm²	1.5 mm²	16 AWG	20 AWG	Screwless - Push-In Spring	11	-40 C	105 ░C	8 A	1
