822473 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

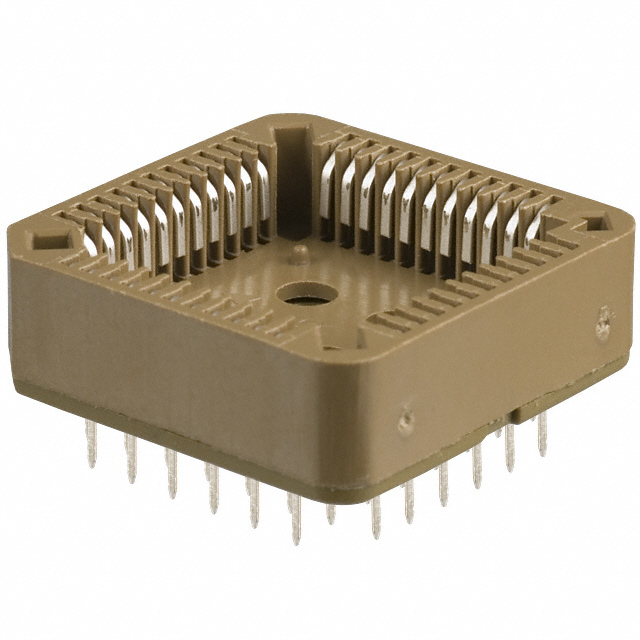

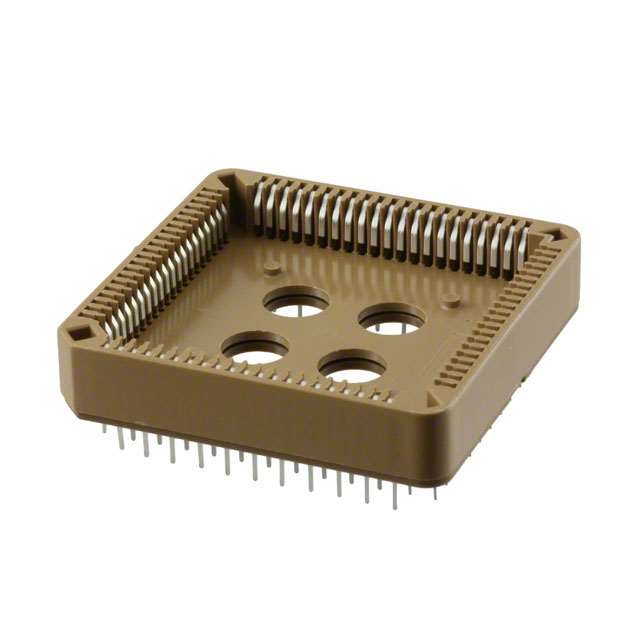

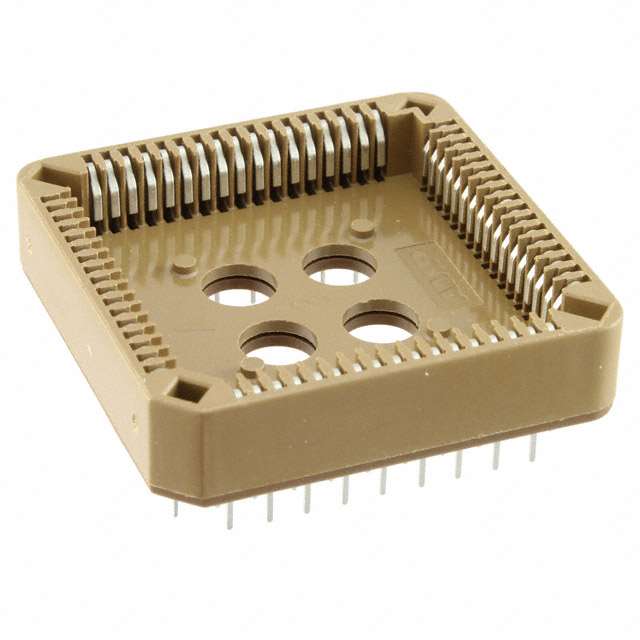

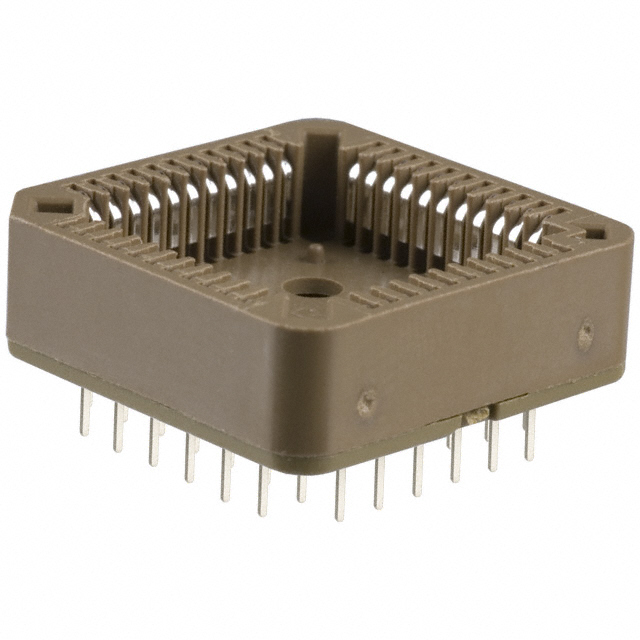

CONN SOCKET PLCC 84POS TIN
| Part | Material Flammability Rating | Type | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Features | Termination | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Mounting Type | Contact Material - Mating | Pitch - Post | Pitch - Post | Contact Material - Post | Housing Material | Number of Positions or Pins (Grid) | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [y] | Number of Positions or Pins (Grid) [x] | Number of Positions or Pins (Grid) [custom] | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | UL94 V-0 | PLCC | 1.27 mm | 0.05 in | Tin | Closed Frame | Solder | 100 çin | 2.54 çm | 2.54 µm | 100 µin | Through Hole | Phosphor Bronze | 0.1 in | 2.54 mm | Phosphor Bronze | Thermoplastic | ||||||||||
 TE Connectivity AMP Connectors | UL94 V-0 | PLCC | 1.27 mm | 0.05 in | Tin | Closed Frame | Solder | 100 çin | 2.54 çm | 2.54 µm | 100 µin | Through Hole | Phosphor Bronze | 0.1 in | 2.54 mm | Phosphor Bronze | Thermoplastic | 20 | 5 | 4 | |||||||
 TE Connectivity AMP Connectors | UL94 V-0 | PLCC | 1.27 mm | 0.05 in | Tin | Closed Frame | Solder | Through Hole | Phosphor Bronze | 0.1 in | 2.54 mm | Phosphor Bronze | Thermoplastic | 4 | 17 | 68 | |||||||||||
 TE Connectivity AMP Connectors | UL94 V-0 | PLCC | 1.27 mm | 0.05 in | Tin | Closed Frame | Solder | Through Hole | Phosphor Bronze | 0.1 in | 2.54 mm | Phosphor Bronze | Thermoplastic | 44 | 11 | 4 | |||||||||||
TE Connectivity AMP Connectors | UL94 V-0 | PLCC | 1.27 mm | 0.05 in | Tin | Closed Frame | Solder | 100 çin | 2.54 çm | 2.54 µm | 100 µin | Through Hole | Phosphor Bronze | 0.1 in | 2.54 mm | Phosphor Bronze | Thermoplastic | 52 | 4 x 13 | ||||||||
 TE Connectivity AMP Connectors | UL94 V-0 | PLCC | 1.27 mm | 0.05 in | Tin-Lead | Closed Frame | Solder | Through Hole | Phosphor Bronze | 0.1 in | 2.54 mm | Phosphor Bronze | Thermoplastic | 44 | 11 | 4 | Tin-Lead |
