1958191 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

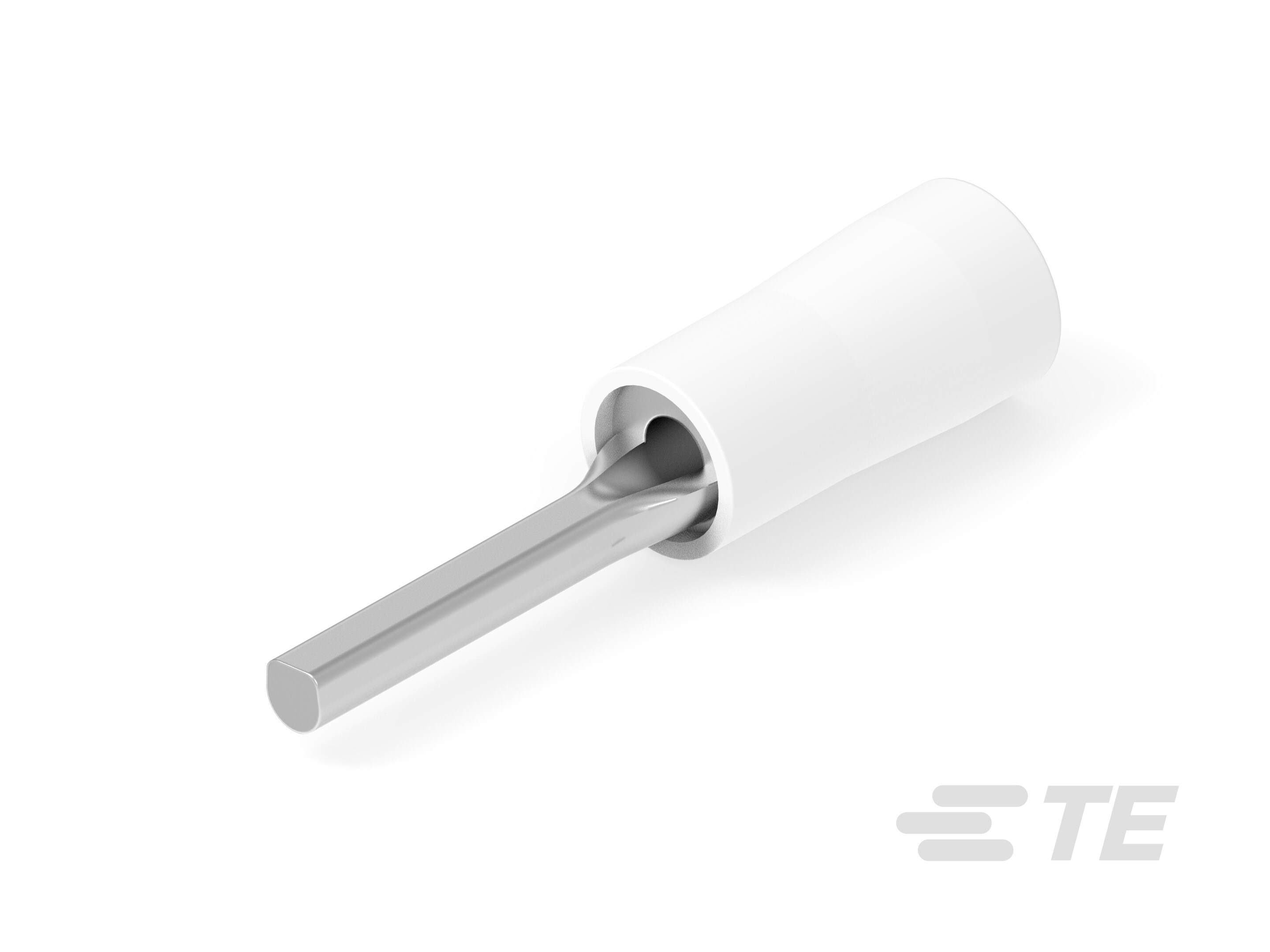

CONN WIRE PIN TERM 16-22AWG PIDG
| Part | Contact Finish | Contact Material | Material - Insulation | Length - Overall [x] | Length - Overall [x] | Color | Insulation | Length - Pin | Length - Pin | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Max] | Insulation Diameter [Min] | Termination | Pin Diameter [diameter] | Pin Diameter [diameter] | Wire Gauge [Min] | Wire Gauge [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Tin | Copper | Polyvinylidene Fluoride (PVDF) | 0.918 in | 23.32 mm | Natural Red Stripe | Insulated | 0.39 in | 9.91 mm | 2.67 mm | 0.14 in | 3.56 mm | 0.105 in | Crimp | 0.07 in | 1.78 mm | 16 AWG | 22 AWG |
