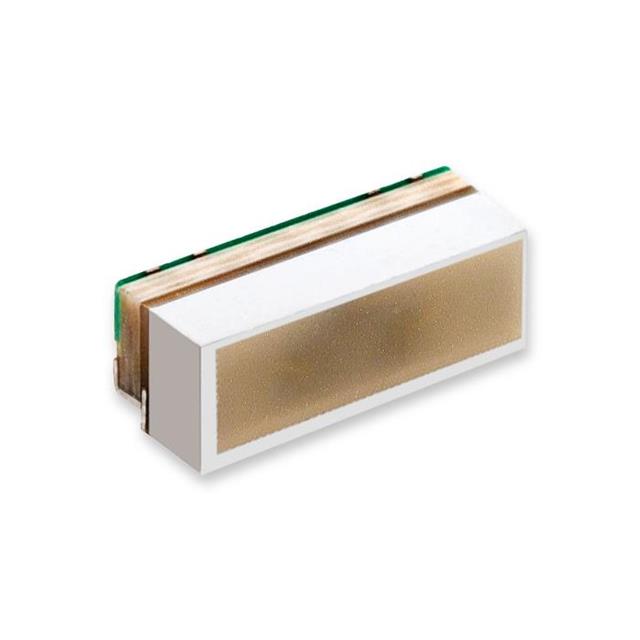

CL-421 Series
Manufacturer: Citizen Finedevice Co Ltd
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
LED RGB SMD R/A
| Part | Mounting Type | Wavelength - Dominant Color | Wavelength - Dominant (Red) | Wavelength - Dominant (Blue) | Wavelength - Dominant (Green) | Color | Height (Max) | Voltage - Forward (Vf) (Typ) Color | Voltage - Forward (Vf) (Typ) (Red) | Voltage - Forward (Vf) (Typ) (Blue) | Voltage - Forward (Vf) (Typ) (Green) | Millicandela Rating Colors | Millicandela Rating (Green) | Millicandela Rating (Red) | Millicandela Rating (Blue) | Size / Dimension Length | Size / Dimension Width | Configuration | Lens Length | Lens Width | Package / Case | Lens Style | Current - Test (Green) | Current - Test Colors | Current - Test (Red) | Current - Test (Blue) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Citizen Finedevice Co Ltd | Right Angle Surface Mount | Blue Green Red | 624 nm | 470 nm | 530 nm | Blue (RGB) Green Red | 1 mm | Blue Green Red | 2.2 V | 3.2 V | 3.45 V | Blue Green Red | 1350 mcd | 700 mcd | 400 mcd | 2.8 mm | 1.35 mm | Common Anode | 2.6 mm | 0.8 mm | 4-SMD No Lead | Flat Top Rectangle | 20 mA | Blue Green Red | 20 mA | 20 mA |
