DP7007 Series

Catalog

NON-ISOLATED DC/DC CONVERTERS POWER SUPPLY

Part	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Voltage - Input (Min) [Min]	Features	Mounting Type	Current - Output (Max) [Max]	Number of Outputs	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Power (Watts)	Applications	Approval Agency	Standard Number	Voltage - Input (Max) [Max]	Type	Operating Temperature [Max]	Operating Temperature [Min]
Bel Fuse Inc. DP7007G-R200	12.5 mm	0.26 in	6.5 mm	0.87 in	0.49 "	22.2 mm	36-SMD Module	8 V	Adjustable Output Remote Sense	Surface Mount	7 A	1	5.5 V	0.7 V	39 W	ITE (Commercial)	CSA UL	60950-1	14 V	Non-Isolated PoL Module	85 °C	-40 C

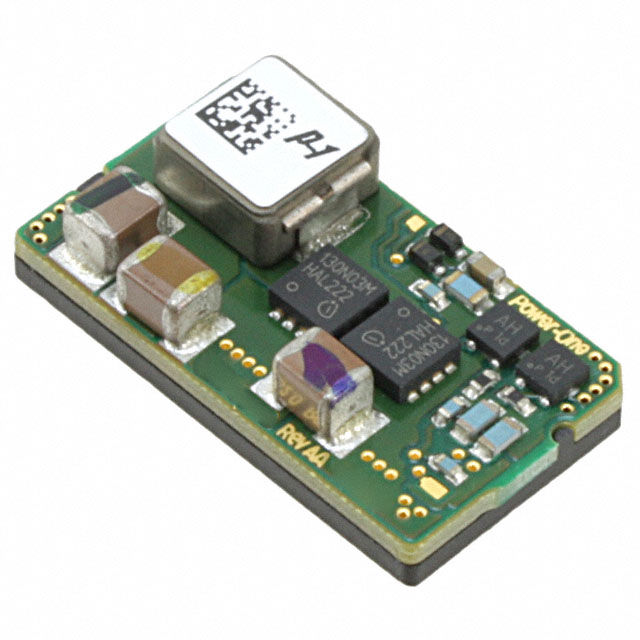

Bel Fuse Inc. DP7007G-R100	12.5 mm	0.26 in	6.5 mm	0.87 in	0.49 "	22.2 mm	Module	8 V		Surface Mount	7 A	1	5.5 V	0.7 V		ITE (Commercial)			14 V	Non-Isolated PoL Module Digital	85 °C	-40 C
Bel Fuse Inc. DP7007G	12.5 mm	0.26 in	6.5 mm	0.87 in	0.49 "	22.2 mm	Module	8 V		Surface Mount	7 A	1	5.5 V	0.7 V		ITE (Commercial)			14 V	Non-Isolated PoL Module Digital	85 °C	-40 C
