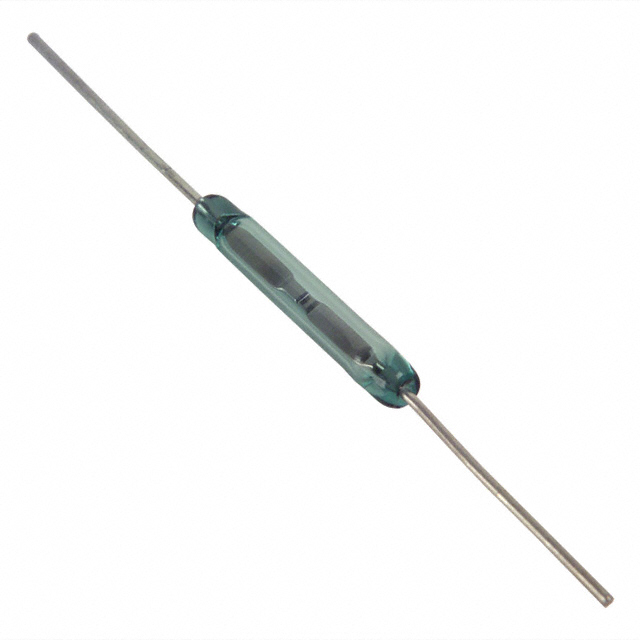

MACD-14 Series
Manufacturer: LITTELFUSE
Beta
⌘K
REED SWITCH, MACD-14 SERIES, SPST-NO, THROUGH HOLE, 500 MA, 200 VDC, 10 W
| Part | Length - Overall [x] | Length - Overall [x] | Circuit | Power - Rated | Size - Body [diameter] | Size - Body [x] | Size - Body [x] | Size - Body [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Current - Carry | Current - Switching | Termination Style | Type | Mounting Type | Operate Range [Max] | Operate Range [Min] | Release Time | Operate Time | Voltage - Switching AC [custom] | Voltage - Switching DC | Capacitance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 44.3 mm | 1.744 in | SPST-NO | 10 W | 0.09 " | 0.551 " | 14 mm | 2.28 mm | 125 °C | -40 C | 1 A | 350 mA 500 mA | Axial | Glass Body Reed | Through Hole | 21 AT | 19 | 0.2 ms | 0.6 ms | 140 V | 200 V | 0.3 pF |
