ACVN51 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K

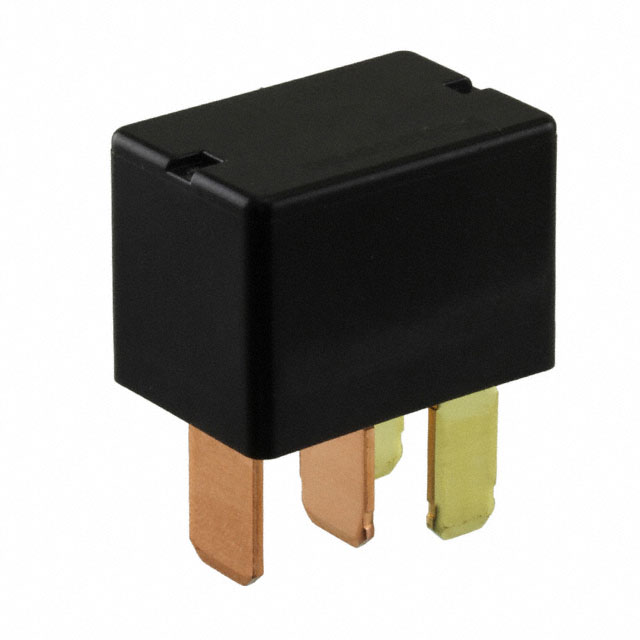

RELAY AUTOMOTIVE SPST 35A 12V
| Part | Coil Power | Coil Resistance | Contact Material | Contact Rating (Current) | Coil Current | Mounting Type | Contact Form | Switching Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Coil Type | Must Operate Voltage | Features | Coil Voltage | Release Time | Must Release Voltage | Operate Time | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 800 mW | 180 Ohms | Silver Alloy Cadmium Free | 35 A | 66.7 mA | Socketable | SPST-NO (1 Form A) | 14 VDC | 85 °C | -40 C | Non Latching | 7 VDC | Sealed - Fully | 12 VDC | 10 ms | 0.5 VDC | 10 ms | Plug In |
