JF15SP Series

Catalog

TACTILE SWITCH, JF SERIES, TOP ACTUATED, THROUGH HOLE, ROUND BUTTON, 300 GF, 50MA AT 24VDC

Part	Switch Travel	Mechanical Life	Actuator Material	Mounting Type	Operating Force	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Features	Illumination	Switch Function	Actuator Orientation	Contact Rating @ Voltage	Actuator Type	Actuator Height off PCB, Vertical	Outline [x]	Outline [y]	Actuator Height off PCB, Vertical [z]
NKK Switches JF15SP2C	0.4 mm	500000 Cycles	Polyamide (PA) Nylon	Through Hole	300 gf	SPST-NO	85 °C	-25 °C	PC Pin	Process Sealed	Non-Illuminated	Off-Mom	Top Actuated	0.05 A 24 VDC	Round Button	5.08 mm	17.7 mm	17.7 mm
NKK Switches JF15SP4C	0.8 mm	500000 Cycles	Polyamide (PA) Nylon	Through Hole	0.2 kgf	SPST-NO	85 °C	-25 °C	PC Pin	Process Sealed	Non-Illuminated	Off-Mom	Top Actuated	0.05 A 24 VDC	Square Button	6.98 mm	17.7 mm	17.7 mm

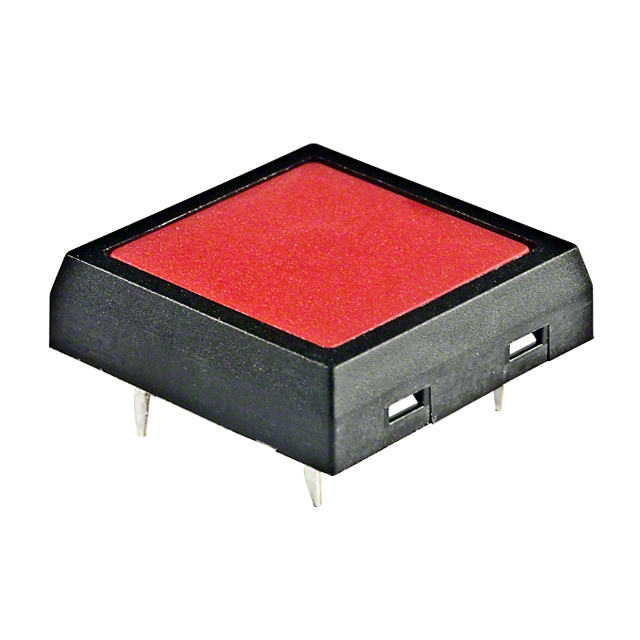

NKK Switches JF15SP1C	0.4 mm	500000 Cycles	Polyamide (PA) Nylon	Through Hole	300 gf	SPST-NO	85 °C	-25 °C	PC Pin	Process Sealed	Non-Illuminated	Off-Mom	Top Actuated	0.05 A 24 VDC	Square Button	5.08 mm	17.7 mm	17.7 mm
NKK Switches JF15SP3G	0.8 mm	500000 Cycles	Polyamide (PA) Nylon	Through Hole	196 gf	SPST-NO	85 °C	-25 °C	PC Pin	Process Sealed	Non-Illuminated	Off-Mom	Top Actuated	0.05 A 24 VDC	Square Button		17.7 mm	17.7 mm	6.78 mm
NKK Switches JF15SP3D	0.8 mm	500000 Cycles	Polyamide (PA) Nylon	Through Hole	196 gf	SPST-NO	85 °C	-25 °C	PC Pin	Process Sealed	Non-Illuminated	Off-Mom	Top Actuated	0.05 A 24 VDC	Square Button		17.7 mm	17.7 mm	6.78 mm

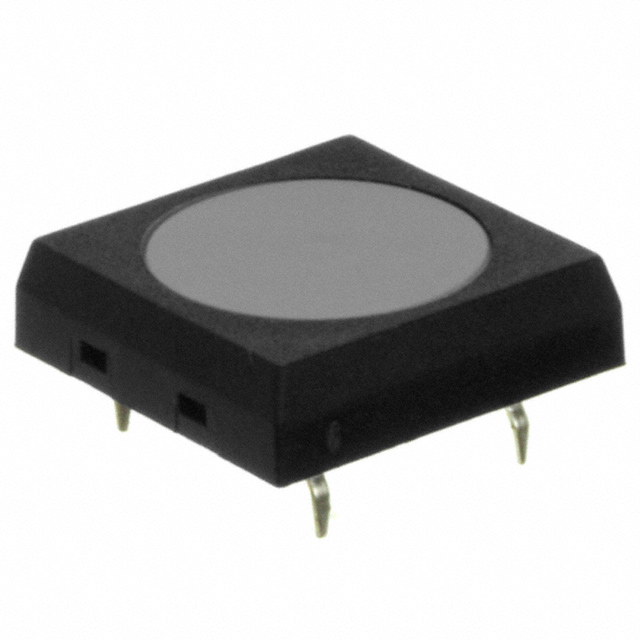

NKK Switches JF15SP2H	0.4 mm	500000 Cycles	Polyamide (PA) Nylon	Through Hole	300 gf	SPST-NO	85 °C	-25 °C	PC Pin	Process Sealed	Non-Illuminated	Off-Mom	Top Actuated	0.05 A 24 VDC	Round Button	5.08 mm	17.7 mm	17.7 mm
NKK Switches JF15SP2G	0.4 mm	500000 Cycles	Polyamide (PA) Nylon	Through Hole	300 gf	SPST-NO	85 °C	-25 °C	PC Pin	Process Sealed	Non-Illuminated	Off-Mom	Top Actuated	0.05 A 24 VDC	Round Button	5.08 mm	17.7 mm	17.7 mm
NKK Switches JF15SP2D	0.4 mm	500000 Cycles	Polyamide (PA) Nylon	Through Hole	300 gf	SPST-NO	85 °C	-25 °C	PC Pin	Process Sealed	Non-Illuminated	Off-Mom	Top Actuated	0.05 A 24 VDC	Round Button	5.08 mm	17.7 mm	17.7 mm

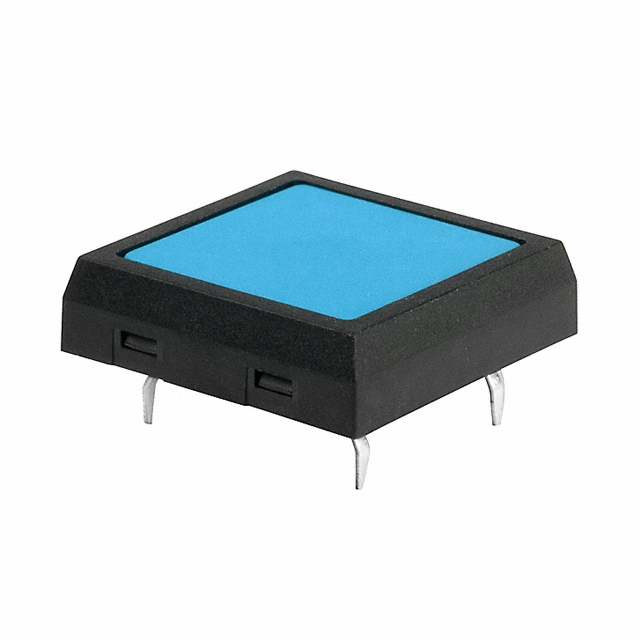

NKK Switches JF15SP1G	0.4 mm	500000 Cycles	Polyamide (PA) Nylon	Through Hole	300 gf	SPST-NO	85 °C	-25 °C	PC Pin	Process Sealed	Non-Illuminated	Off-Mom	Top Actuated	0.05 A 24 VDC	Square Button	5.08 mm	17.7 mm	17.7 mm
NKK Switches JF15SP1A	0.4 mm	500000 Cycles	Polyamide (PA) Nylon	Through Hole	300 gf	SPST-NO	85 °C	-25 °C	PC Pin	Process Sealed	Non-Illuminated	Off-Mom	Top Actuated	0.05 A 24 VDC	Square Button	5.08 mm	17.7 mm	17.7 mm
