i7C Series

Catalog

NON ISOLATED POL DC/DC CONVERTER, ITE, SIXTEENTH BRICK, 300 W, 9.6 V, 48 V, 8 A

Part	Control Features	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Features	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Approval Agency	Efficiency	Current - Output (Max) [Max]	Mounting Type	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Applications	Type	Standard Number	Package / Case	Voltage - Output 1 [Max] [custom]	Voltage - Output 1 [Min] [custom]
TDK Corporation I7C4W008A120V-002-R	Active High Enable	53 V	9 V	Adjustable Output Imon PGood Remote On/Off Sync	300 W	12.2 mm	36.8 mm	1.45 in	34 mm	1.34 in	0.48 "	CE cURus IEC	96 %	8 A	Through Hole	1	125 °C	-40 C	Sixteenth Brick	48 V	9.6 V	ITE (Commercial)	Non-Isolated PoL Module	60950-1 62368-1	Sixteenth Brick
TDK Corporation I7C4W012A050V-003-R	Active Low Enable	53 V	9 V	Adjustable Output Imon PGood Remote On/Off Sync	300 W	12.2 mm	36.8 mm	1.45 in	34 mm	1.34 in	0.48 "	CE cURus IEC	97 %	12.5 A	Through Hole	1	125 °C	-40 C	Sixteenth Brick			ITE (Commercial)	Non-Isolated PoL Module	60950-1 62368-1	Sixteenth Brick	28 V	5 V
TDK Corporation I7C4W012A050V-001-R	Active Low Enable	53 V	9 V	Adjustable Output Remote On/Off	300 W	12.2 mm	36.8 mm	1.45 in	34 mm	1.34 in	0.48 "	CE cURus IEC	97 %	12.5 A	Through Hole	1	125 °C	-40 C	Sixteenth Brick			ITE (Commercial)	Non-Isolated PoL Module	60950-1 62368-1	Sixteenth Brick	28 V	5 V
TDK Corporation I7C4W012A050V-002-R	Active High Enable	53 V	9 V	Adjustable Output Imon PGood Remote On/Off Sync	300 W	12.2 mm	36.8 mm	1.45 in	34 mm	1.34 in	0.48 "	CE cURus IEC	97 %	12.5 A	Through Hole	1	125 °C	-40 C	Sixteenth Brick			ITE (Commercial)	Non-Isolated PoL Module	60950-1 62368-1	Sixteenth Brick	28 V	5 V
TDK Corporation i7C4W012A050V-0C1-R	Active Low Enable	53 V	9 V	Adjustable Output Baseplate Remote On/Off	300 W	13 mm	36.8 mm	1.45 in	34 mm	1.34 in	0.51 in	CE cURus IEC	97 %	12.5 A	Through Hole	1	125 °C	-40 C	Sixteenth Brick			ITE (Commercial)	Non-Isolated PoL Module	60950-1 62368-1	Sixteenth Brick	28 V	5 V
TDK Corporation I7C4W008A120V-001-R	Active Low Enable	53 V	9 V	Adjustable Output Remote On/Off	300 W	12.2 mm	36.8 mm	1.45 in	34 mm	1.34 in	0.48 "	CE cURus IEC	96 %	8 A	Through Hole	1	125 °C	-40 C	Sixteenth Brick	48 V	9.6 V	ITE (Commercial)	Non-Isolated PoL Module	60950-1 62368-1	Sixteenth Brick
TDK Corporation I7C4W008A120V-003-R	Active Low Enable	53 V	9 V	Adjustable Output Imon PGood Remote On/Off Sync	300 W	12.2 mm	36.8 mm	1.45 in	34 mm	1.34 in	0.48 "	CE cURus IEC	96 %	8 A	Through Hole	1	125 °C	-40 C	Sixteenth Brick	48 V	9.6 V	ITE (Commercial)	Non-Isolated PoL Module	60950-1 62368-1	Sixteenth Brick

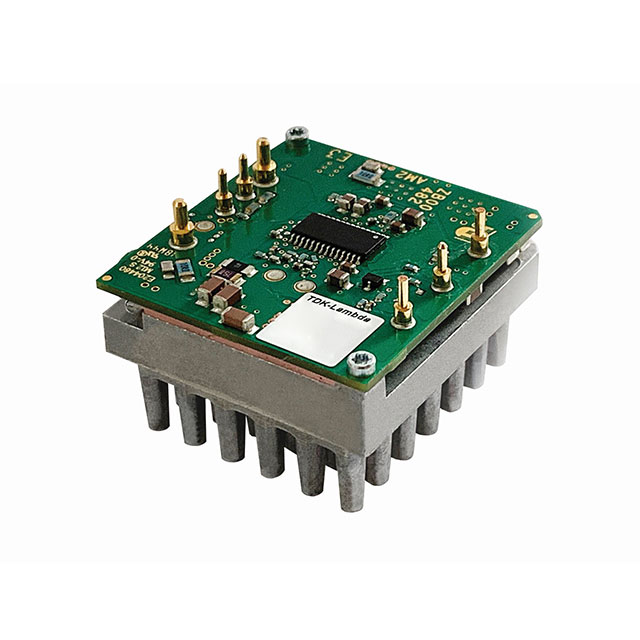

TDK Corporation I7C4W008A120V-0F1-R	Active Low Enable	53 V	9 V	Adjustable Output Heat Sink Remote On/Off	300 W	24.9 mm	36.8 mm	1.45 in	34 mm	1.34 in	0.98 in	CE cURus IEC	96 %	8 A	Through Hole	1	125 °C	-40 C	Sixteenth Brick	48 V	9.6 V	ITE (Commercial)	Non-Isolated PoL Module	60950-1 62368-1	Sixteenth Brick
TDK Corporation I7C4W012A050V-0F1-R	Active Low Enable	53 V	9 V	Adjustable Output Heat Sink Remote On/Off	300 W	24.9 mm	36.8 mm	1.45 in	34 mm	1.34 in	0.98 in	CE cURus IEC	97 %	12.5 A	Through Hole	1	125 °C	-40 C	Sixteenth Brick			ITE (Commercial)	Non-Isolated PoL Module	60950-1 62368-1	Sixteenth Brick	28 V	5 V

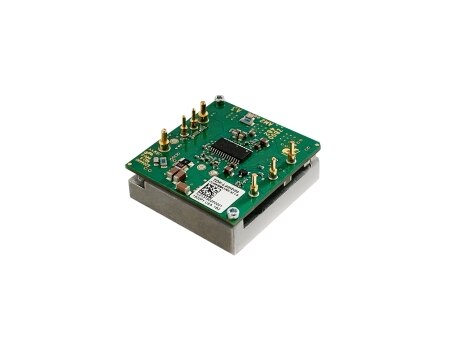

TDK Corporation I7C4W008A120V-0C1-R	Active Low Enable	53 V	9 V	Adjustable Output Baseplate Remote On/Off	300 W	13 mm	36.8 mm	1.45 in	34 mm	1.34 in	0.51 in	CE cURus IEC	96 %	8 A	Through Hole	1	125 °C	-40 C	Sixteenth Brick	48 V	9.6 V	ITE (Commercial)	Non-Isolated PoL Module	60950-1 62368-1	Sixteenth Brick
