Pushbutton Switches ON-NONE-ON WHITE
Pushbutton Switches ON-NONE-ON WHITE
| Part | Termination | Technology | Input Type | Driver Circuitry | Operating Mode | Frequency | Mounting Type | Port Location | Sound Pressure Level (SPL) | Ratings | Voltage - Rated | Operating Temperature [Min] | Operating Temperature [Max] | Current - Supply | Voltage Range [Min] | Voltage Range [Max] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Size / Dimension [diameter] | Size / Dimension [diameter] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Power - Rated | Power - Max [Max] | Material - Cone | Impedance | Frequency - Self Resonant | Efficiency - Testing | Efficiency - dBA | Type | Shape | Frequency Range [Min] | Frequency Range [Max] | Material - Magnet | Efficiency - Type | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

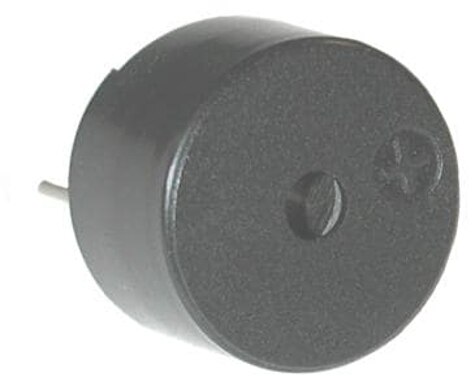

 Mallory Sonalert Products Inc. | PC Pins | Magnetic | DC | Indicator Internally Driven | Single Tone | 2.3 kHz | Through Hole | Top | 85 dB | Washable | 12 VDC | -20 ░C | 70 °C | 50 mA | 9 V | 15 V | 0.402 in | 10.2 mm | 0.472 " | 12 mm | ||||||||||||||||
 Mallory Sonalert Products Inc. | PC Pins | Magnetic | DC | Indicator Internally Driven | Single Tone | 2.3 kHz | Through Hole | Top | 85 dB | Washable | 3 VDC | -20 ░C | 70 °C | 50 mA | 2 V | 5 VDC | 0.472 " | 12 mm | 0.323 in | 8.2 mm | ||||||||||||||||
 Mallory Sonalert Products Inc. | PC Pins | Magnetic | Top | 0.315 in | 8 mm | 0.669 in | 17 mm | 200 mW | 500 mW | Polyester Polyethylene Terephthalate (PET) | 8 Ohms | 1500 Hz | 1W/1M | 74 dBA | General Purpose | Round | 1.5 kHz | 20 kHz | Nd-Fe-B | Sound Pressure Level (SPL) | ||||||||||||||||

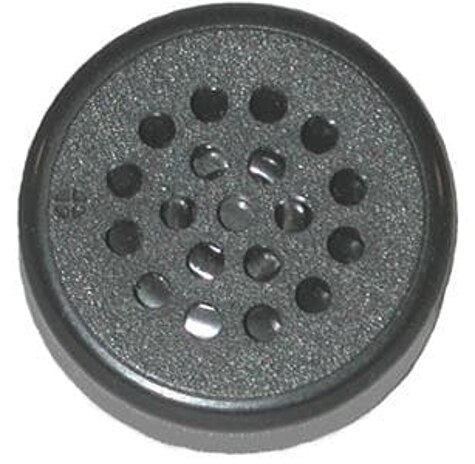

 Mallory Sonalert Products Inc. | PC Pins | Magnetic | Top | 7.5 mm | 0.591 in | 0.295 in | 300 mW | 500 mW | Polyester Polyethylene Terephthalate (PET) | 8 Ohms | 1700 Hz | 1W/1M | 73 dBA | General Purpose | Round | 1.7 kHz | 20 kHz | Nd-Fe-B | Sound Pressure Level (SPL) | 15 mm | ||||||||||||||||
 Mallory Sonalert Products Inc. | PC Pins | Magnetic | DC | Indicator Internally Driven | Single Tone | 2.3 kHz | Through Hole | Top | 80 dB | Washable | 1.5 VDC | -20 ░C | 70 °C | 25 mA | 1.25 V | 2.5 V | 0.402 in | 10.2 mm | 0.472 " | 12 mm |
