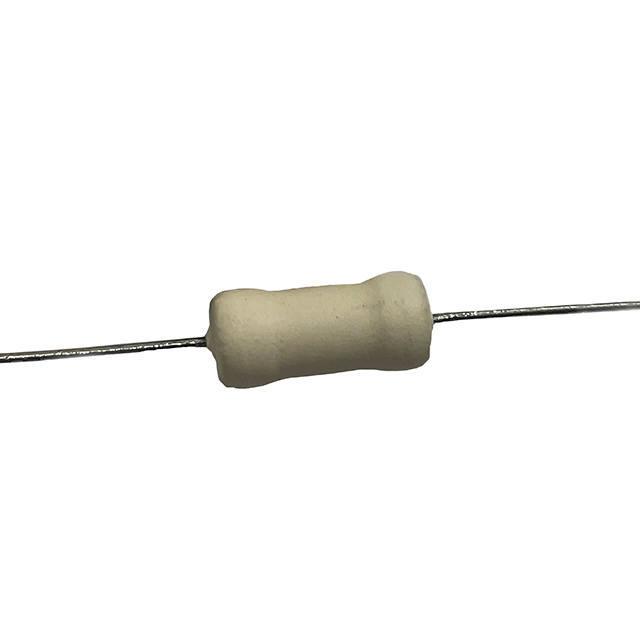

OC Series

Manufacturer: Ohmite

Catalog

CERAMIC COMPOSITION RESISTORS 1W 560OHM 10% TOL

Part	Resistance	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Composition	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Temperature Coefficient [Min]	Supplier Device Package	Features	Number of Terminations [custom]	Tolerance
Ohmite OC1K561E	560 Ohms	Axial	-55 C	230 °C	1.2 W	Ceramic	16.5 mm	7.9 mm	0.65 in	0.311 in	-800 ppm/°C	Axial	High Voltage Pulse Withstanding	2	10 %
Ohmite OC1K151E	150 Ohms	Axial	-55 C	230 °C	1.2 W	Ceramic	16.5 mm	7.9 mm	0.65 in	0.311 in	-800 ppm/°C	Axial	High Voltage Pulse Withstanding	2	10 %
Ohmite OC2K100E	10 Ohms	Axial	-55 C	230 °C	1.7 W	Ceramic					-800 ppm/°C	Axial	High Voltage Pulse Withstanding	2	10 %
Ohmite OC1K101E	100 Ohms	Axial	-55 C	230 °C	1.2 W	Ceramic	16.5 mm	7.9 mm	0.65 in	0.311 in	-800 ppm/°C	Axial	High Voltage Pulse Withstanding	2	10 %
Ohmite OC2K821E	820 Ohms	Axial	-55 C	230 °C	1.7 W	Ceramic					-800 ppm/°C	Axial	High Voltage Pulse Withstanding	2	10 %
Ohmite OC2K560E-TR	56 Ohms	Axial	-55 C	230 °C	1.7 W	Ceramic					-800 ppm/°C	Axial	High Voltage Pulse Withstanding	2	10 %
Ohmite OC2K102E	1000 Ohms	Axial	-55 C	230 °C	1.7 W	Ceramic					-800 ppm/°C	Axial	High Voltage Pulse Withstanding	2	10 %
Ohmite OC2K470E	47 Ohms	Axial	-55 C	230 °C	1.7 W	Ceramic					-800 ppm/°C	Axial	High Voltage Pulse Withstanding	2	10 %
Ohmite OC2K820E	82 Ohms	Axial	-55 C	230 °C	1.7 W	Ceramic					-800 ppm/°C	Axial	High Voltage Pulse Withstanding	2	10 %
Ohmite OC2K150E	15 Ohms	Axial	-55 C	230 °C	1.7 W	Ceramic					-800 ppm/°C	Axial	High Voltage Pulse Withstanding	2	10 %
