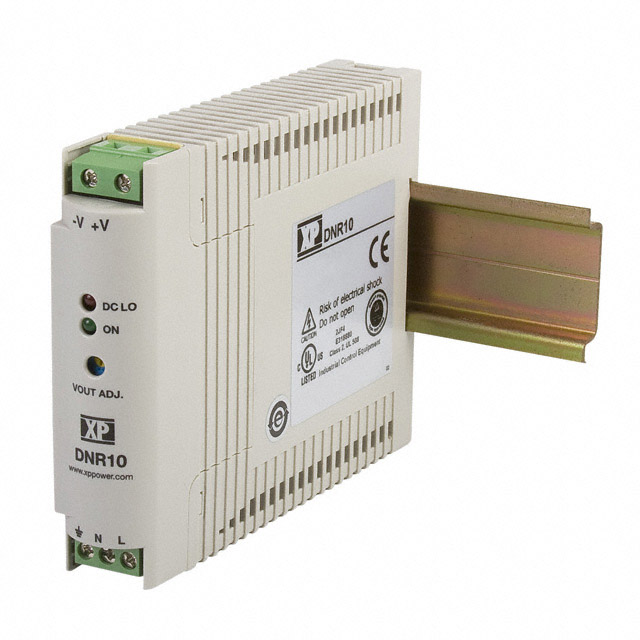

DNR10 Series

Manufacturer: XP Power

Catalog

AC/DC DIN RAIL SUPPLY 15V 10W

Part	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Number of Outputs	Power (Watts)	DC Voltage - Input (Max) [Max]	Applications	Standard Number	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Efficiency	Input Type	DC Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Output 1	Features	Approval Agency
XP Power DNR10US15-S	90 VAC	264 VAC	1	10 W	375 V	Hazardous Locations Industrial ITE (Commercial)	62368-1	70 °C	-20 °C	3000 V	76 %	AC or DC	120 V	670 mA	3.48 "	22.5 mm	0.89 in	115 mm	4.53 "	88.5 mm	15 V	Adjustable Output Universal Input	CE
XP Power DNR10US15	90 VAC	264 VAC	1	10 W	375 V	Hazardous Locations Industrial ITE (Commercial)	62368-1	70 °C	-20 °C	3000 V	76 %	AC or DC	120 V	670 mA	3.48 "	22.5 mm	0.89 in	115 mm	4.53 "	88.5 mm	15 V	Adjustable Output Universal Input	CE
XP Power DNR10US24-S	90 VAC	264 VAC	1	10 W	375 V	Hazardous Locations Industrial ITE (Commercial)	62368-1	70 °C	-20 °C	3000 V	76 %	AC or DC	120 V	420 mA	3.48 "	22.5 mm	0.89 in	115 mm	4.53 "	88.5 mm	24 V	Adjustable Output Universal Input	CE
XP Power DNR10US24	90 VAC	264 VAC	1	10 W	375 V	Hazardous Locations Industrial ITE (Commercial)	62368-1	70 °C	-20 °C	3000 V	72 %	AC or DC	120 V	420 mA	3.48 "	22.5 mm	0.89 in	115 mm	4.53 "	88.5 mm	24 V	Adjustable Output Universal Input	CE
