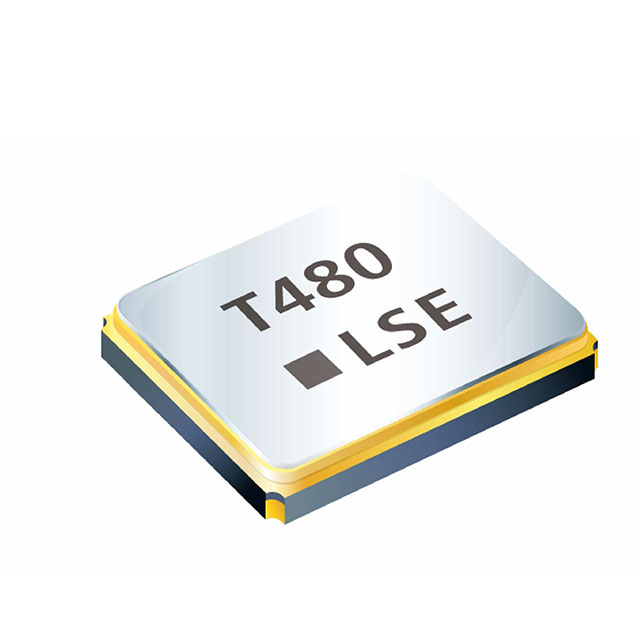

8Z Series

Catalog

CRYSTALS 2.5X2.0 SEAM SEAL MHZ QUARTZ XTAL -4PAD / CERAMIC, +/-10PPM A.25C, +/-10PPM (-30-85C), 8PF

Part	Mounting Type	Package / Case	ESR (Equivalent Series Resistance)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Load Capacitance	Frequency Stability	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Frequency Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Frequency	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Mode
TXC CORPORATION 8Z-32.000METV-T	Surface Mount	4-SMD No Lead	60 Ohms	2.5 mm	0.079 in	0.098 in	2 mm	8 pF	10 ppm	2	2.5	4-SMD	10 ppm	85 °C	-30 ░C	32 MHz	MHz Crystal	0.55 mm	0.022 in	Fundamental
TXC CORPORATION 8Z-32.000MAAV-T	Surface Mount	4-SMD No Lead	60 Ohms	2.5 mm	0.079 in	0.098 in	2 mm	8 pF	30 ppm	2	2.5	4-SMD	30 ppm	70 °C	-30 ░C	32 MHz	MHz Crystal	0.55 mm	0.022 in	Fundamental
TXC CORPORATION 8Z-14.31818MAAE-T	Surface Mount	4-SMD No Lead	100 Ohms	2.5 mm	0.079 in	0.098 in	2 mm	12 pF	30 ppm	2	2.5	4-SMD	30 ppm	70 °C	-20 ░C	14.31818 MHz	MHz Crystal	0.55 mm	0.022 in	Fundamental
TXC CORPORATION 8Z-26.000METV-T	Surface Mount	4-SMD No Lead	100 Ohms	2.5 mm	0.079 in	0.098 in	2 mm	8 pF	10 ppm	2	2.5	4-SMD	10 ppm	85 °C	-30 ░C	26 MHz	MHz Crystal	0.55 mm	0.022 in	Fundamental
TXC CORPORATION 8Z-37.400MEEQ-T	Surface Mount	4-SMD No Lead	60 Ohms	2.5 mm	0.079 in	0.098 in	2 mm	10 pF	10 ppm	2	2.5	4-SMD	10 ppm	70 °C	-20 ░C	37.4 MHz	MHz Crystal	0.55 mm	0.022 in	Fundamental
TXC CORPORATION 8Z-12.000MAHJ-T	Surface Mount	4-SMD No Lead	150 Ohms	2.5 mm	0.079 in	0.098 in	2 mm	18 pF	30 ppm	2	2.5	4-SMD	30 ppm	85 °C	-40 C	12 MHz	MHz Crystal	0.55 mm	0.022 in	Fundamental
TXC CORPORATION 8Z-30.000MAAJ-T	Surface Mount	4-SMD No Lead	60 Ohms	2.5 mm	0.079 in	0.098 in	2 mm	18 pF	30 ppm	2	2.5	4-SMD	30 ppm	70 °C	-20 ░C	30 MHz	MHz Crystal	0.55 mm	0.022 in	Fundamental
TXC CORPORATION 8Z-37.400MEEV-T	Surface Mount	4-SMD No Lead	60 Ohms	2.5 mm	0.079 in	0.098 in	2 mm	8 pF	10 ppm	2	2.5	4-SMD	10 ppm	70 °C	-20 ░C	37.4 MHz	MHz Crystal	0.55 mm	0.022 in	Fundamental
TXC CORPORATION 8Z-38.400MAAV-T	Surface Mount	4-SMD No Lead	60 Ohms	2.5 mm	0.079 in	0.098 in	2 mm	8 pF	30 ppm	2	2.5	4-SMD	30 ppm	70 °C	-20 ░C	38.4 MHz	MHz Crystal	0.55 mm	0.022 in	Fundamental
TXC CORPORATION 8Z-25.000MAHE-T	Surface Mount	4-SMD No Lead	100 Ohms	2.5 mm	0.079 in	0.098 in	2 mm	12 pF	30 ppm	2	2.5	4-SMD	30 ppm	85 °C	-40 C	25 MHz	MHz Crystal	0.55 mm	0.022 in	Fundamental
