LTM4638 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

POWER MANAGEMENT IC DEVELOPMENT TOOLS 20VIN, 15A STEP-DOWN DC/DC MODULE REGULATOR

Part	Board Type	Outputs and Type	Outputs and Type	Supplied Contents	Voltage - Output	Utilized IC / Part	Current - Output	Regulator Topology	Voltage - Input [Max]	Voltage - Input [Min]	Frequency - Switching	Contents	Main Purpose	Voltage - Input (Max) [Max]	Voltage - Output 1 [Min] [custom]	Voltage - Output 1 [Max] [custom]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Mounting Type	Features	Applications	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Number of Outputs	Package / Case
Analog Devices Inc./Maxim Integrated DC2665B-B	Fully Populated	1	1 Non-Isolated Output Non-Isolated	Board(s)	1 V	LTM4638	15 A	Buck	20 V	3.1 V	600 kHz	Board(s)	DC/DC Step Down

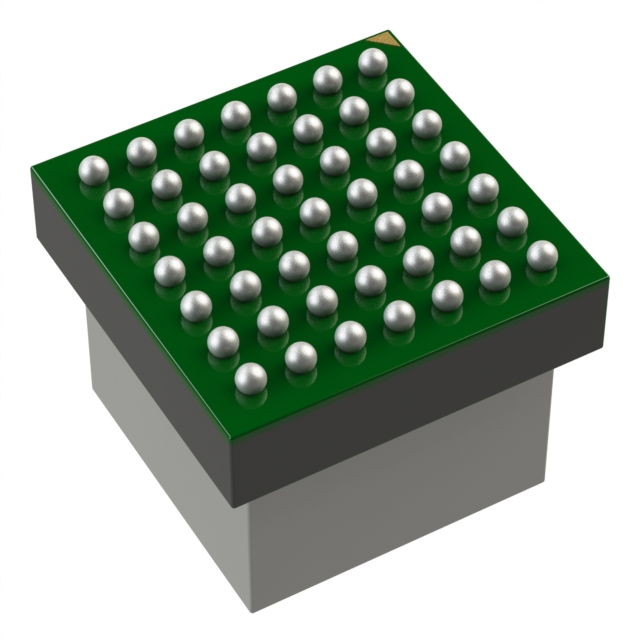

Analog Devices Inc./Maxim Integrated LTM4638EY#PBF														20 V	0.6 V	5.5 V	Non-Isolated PoL Module	125 °C	-40 C	49-BGA (6.25x6.25)	Surface Mount	OCP OTP OVP UVLO	ITE (Commercial)	6.3 mm	0.25 in	6.3 mm	0.25 in	0.21 in	5.4 mm	3.1 V	15 A	1	49-BFBGA Module
Analog Devices Inc./Maxim Integrated LTM4638IY														20 V	0.6 V	5.5 V	Non-Isolated PoL Module	125 °C	-40 °C	49-BGA (6.25x6.25)	Surface Mount	Adjustable Output Load Sharing Remote On/Off Remote Sense	ITE (Commercial)	6.3 mm	0.25 in	6.3 mm	0.25 in	0.2 "	5 mm	3.1 V	15 A	1	49-BFBGA Module
Analog Devices Inc./Maxim Integrated LTM4638IY#PBF														20 V	0.6 V	5.5 V	Non-Isolated PoL Module	125 °C	-40 C	49-BGA (6.25x6.25)	Surface Mount	OCP OTP OVP UVLO	ITE (Commercial)	6.3 mm	0.25 in	6.3 mm	0.25 in	0.21 in	5.4 mm	3.1 V	15 A	1	49-BFBGA Module
