176833 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

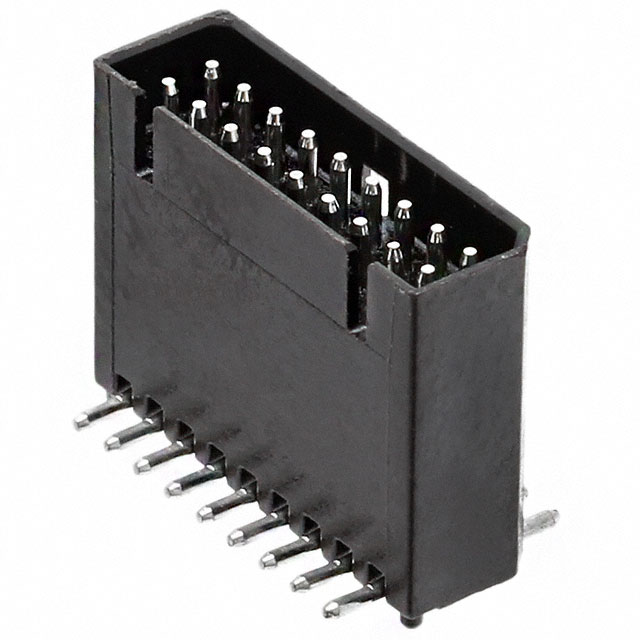

CONN HEADER SMD 18POS 1.25MM
| Part | Mated Stacking Heights | Number of Rows [custom] | Insulation Height | Insulation Height | Features | Pitch - Mating | Pitch - Mating | Contact Type | Current Rating (Amps) | Contact Material | Number of Positions Loaded | Insulation Color | Shrouding | Contact Shape | Number of Positions | Mounting Type | Voltage Rating | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Connector Type | Row Spacing - Mating | Row Spacing - Mating | Contact Finish - Post | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 10.5 mm 11.3 mm 12.4 mm | 2 | 9.35 mm | 0.368 in | Board Guide | 0.049 in | 1.25 mm | Male Pin | 0.5 A | Brass | All | Black | Shrouded - 4 Wall | Circular | 18 | Surface Mount | 50 V | Polyphenylene Sulfide (PPS) | -30 ░C | 105 ░C | Push-Pull | Header | 1.25 mm | 0.049 in | Tin | Solder |
