RUMF23 Series
Manufacturer: SCHNEIDER ELECTRIC
Beta
⌘K

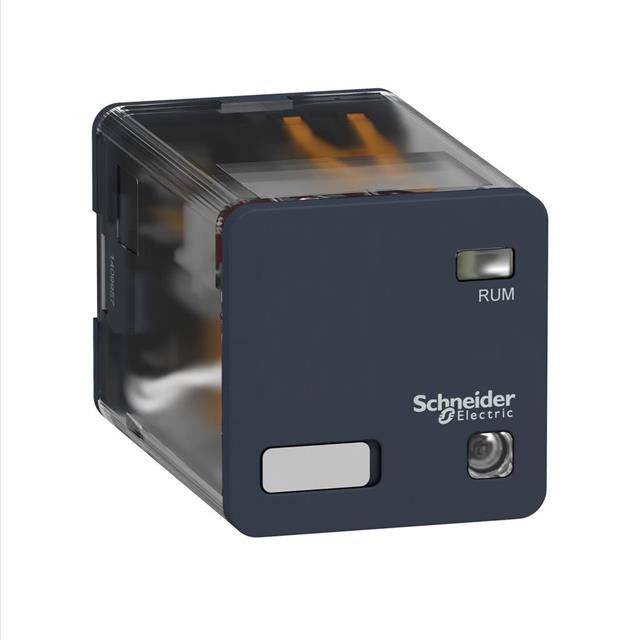

HARMONY, UNIVERSAL PLUG-IN RELAY
| Part | Coil Resistance | Contact Form | Mounting Type | Coil Type | Approval Agency | Switching Voltage [Max] | Load - Max Switching | Contact Material | Release Time | Contact Rating (Current) | Coil Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Must Operate Voltage | Must Release Voltage | Features | Coil Current | Operate Time | Termination Style | Relay Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHNEIDER ELECTRIC | 7.3 kOhms | DPDT (2 Form C) | Socketable | Non Latching | CSA EAC UL | 28 VDC 250 VAC | 280 W 2500 VA | Silver Nickel (AgNi) | 20 ms | 10 A | 110 VDC | 55 °C | -40 C | 88 VDC | 11 VDC | Lighted Indicator | 15.1 mA | 20 ms | Plug In | General Purpose |
SCHNEIDER ELECTRIC | DPDT (2 Form C) | Socketable | Non Latching | CSA EAC UL | 28 VDC 250 VAC | 280 W 2500 VA | Silver Nickel (AgNi) | 20 ms | 10 A | 48 VDC | 55 °C | -40 C | 38.4 VDC | 4.8 VDC | Lighted Indicator | 26.7 mA | 20 ms | Plug In | General Purpose |
