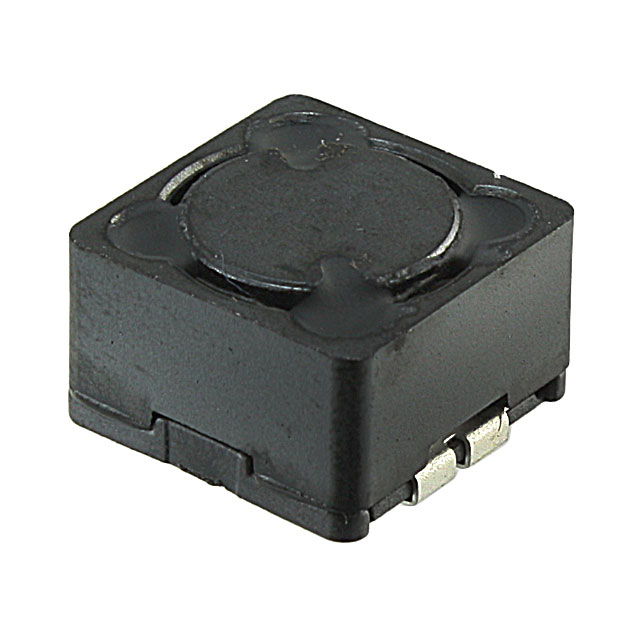

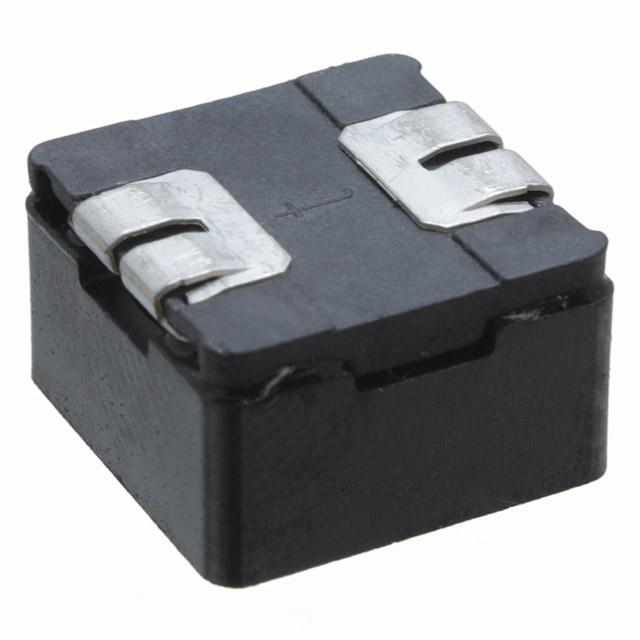

SRR1208 Series

Catalog

MAGNETICS - SHIELDED POWER INDUCTOR /TAPE & REEL - 13" REEL ROHS COMPLIANT: YES

Part	Q @ Freq [custom]	Q @ Freq [custom]	Current Rating (Amps)	DC Resistance (DCR) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Saturation (Isat)	Size / Dimension [y]	Size / Dimension [x]	Inductance	Package / Case	Inductance Frequency - Test	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Material - Core	Type	Tolerance	Mounting Type	Frequency - Self Resonant	Shielding	DC Resistance (DCR)	Q @ Freq
Bourns Inc. SRR1208-101KL	15	796 kHz	1.5 A	170 mOhm	125 °C	-40 C	2.1 A	12.7 mm	12.7 mm	100 µH	Nonstandard	1 kHz	0.335 "	8.5 mm	Ferrite	Drum Core Wirewound	10 %	Surface Mount	4 MHz	Shielded
Bourns Inc. SRR1208-392KL	20	252 kHz	0.3 A	7.8 Ohm	125 °C	-40 C	320 mA	12.7 mm	12.7 mm	3.9 mH	Nonstandard	1 kHz	0.335 "	8.5 mm	Ferrite	Drum Core Wirewound	10 %	Surface Mount	450 kHz	Shielded
Bourns Inc. SRR1208-2R5ML	20	7.96 MHz	7.5 A	11 mOhm	125 °C	-40 C	10 A	12.7 mm	12.7 mm	2.5 µH	Nonstandard	1 kHz	0.335 "	8.5 mm	Ferrite	Drum Core Wirewound	20 %	Surface Mount	37 MHz	Shielded
Bourns Inc. SRR1208-121YL	15	796 kHz	1.4 A	190 mOhm	125 °C	-40 C	2 A	12.7 mm	12.7 mm		Nonstandard	1 kHz	0.335 "	8.5 mm	Ferrite	Drum Core Wirewound	15 %	Surface Mount	3 MHz	Shielded
Bourns Inc. SRR1208-222KL	20	252 kHz	400 mA		125 °C	-40 C	420 mA	12.7 mm	12.7 mm	2.2 mH	Nonstandard	1 kHz	0.335 "	8.5 mm	Ferrite	Drum Core Wirewound	10 %	Surface Mount	650 kHz	Shielded	4.2 Ohm
Bourns Inc. SRR1208-152KL			360 mA		125 °C	-40 C	550 mA	12.7 mm	12.7 mm	1.5 mH	Nonstandard	1 kHz	0.335 "	8.5 mm	Ferrite	Drum Core Wirewound	10 %	Surface Mount	750 kHz	Shielded	2.35 Ohm
Bourns Inc. SRR1208-151KL			1.3 A	240 mOhm	125 °C	-40 C	1.72 A	12.7 mm	12.7 mm	150 µH	Nonstandard	1 kHz	0.335 "	8.5 mm	Ferrite	Drum Core Wirewound	10 %	Surface Mount	3 MHz	Shielded		14 796 kHz
Bourns Inc. SRR1208-270ML			3 A	48 mOhm	125 °C	-40 C	4.3 A	12.7 mm	12.7 mm	27 µH	Nonstandard	1 kHz	0.335 "	8.5 mm	Ferrite	Drum Core Wirewound	20 %	Surface Mount	6.5 MHz	Shielded		2.52 MHz 23
Bourns Inc. SRR1208-100M			5 A	21 mOhm	125 °C	-40 C	6.7 A	12.7 mm	12.7 mm	10 µH	Nonstandard	1 kHz	0.335 "	8.5 mm	Ferrite	Drum Core Wirewound	20 %	Surface Mount	15 MHz	Shielded		2.52 MHz 20
Bourns Inc. SRR1208-681KL			600 mA	1 Ohm	125 °C	-40 C	820 mA	12.7 mm	12.7 mm	680 µH	Nonstandard	1 kHz	0.335 "	8.5 mm	Ferrite	Drum Core Wirewound	10 %	Surface Mount	1.2 MHz	Shielded		13 796 kHz
