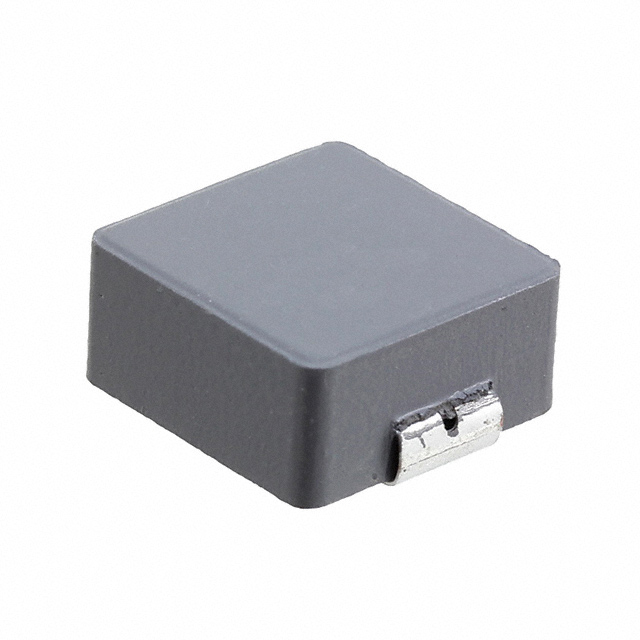

SRP1265A Series

Catalog

IND12.5X13.5X6.2MM,1.8UH20%24A,SHDSMD /TAPE & REEL - 13" REEL

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	DC Resistance (DCR) [Max]	Material - Core	Q @ Freq	Package / Case	Current Rating (Amps)	Shielding	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance	Type	Ratings	Tolerance	Frequency - Self Resonant	Current - Saturation (Isat)	Inductance Frequency - Test	DC Resistance (DCR)
Bourns Inc. SRP1265A-1R8M	-55 C -40 C	150 °C	Surface Mount	4 mOhm	Carbonyl Powder	20 100 kHz	Nonstandard	24 A	Shielded	12.5 mm	13.5 mm	0.531 in	0.492 "	0.252 in	6.4 mm	1.8 µH	Drum Core Wirewound	AEC-Q200	20 %	30 MHz	40 A	100 kHz
Bourns Inc. SRP1265A-470M	-55 C -40 C	150 °C	Surface Mount	90 mOhm	Carbonyl Powder	20 100 kHz	Nonstandard	6.5 A	Shielded	12.5 mm	13.5 mm	0.531 in	0.492 "	0.252 in	6.4 mm	47 µH	Drum Core Wirewound	AEC-Q200	20 %	4 MHz	9.5 A	100 kHz
Bourns Inc. SRP1265A-330M	-55 C -40 C	150 °C	Surface Mount	58 mOhm	Carbonyl Powder	20 100 kHz	Nonstandard	8 A	Shielded	12.5 mm	13.5 mm	0.531 in	0.492 "	0.252 in	6.4 mm	33 µH	Drum Core Wirewound	AEC-Q200	20 %	5 MHz	11 A	100 kHz
Bourns Inc. SRP1265A-R47M	-55 C -40 C	150 °C	Surface Mount		Carbonyl Powder	10 100 kHz	Nonstandard	41 A	Shielded	12.5 mm	13.5 mm	0.531 in	0.492 "	0.252 in	6.4 mm	470 nH	Drum Core Wirewound	AEC-Q200	20 %	75 MHz	63 A	100 kHz	1.2 mOhm
Bourns Inc. SRP1265A-1R0M	-55 C	150 °C	Surface Mount		Carbonyl Powder	20 100 kHz	Nonstandard	30 A	Shielded	12.5 mm	13.5 mm	0.531 in	0.492 "	0.252 in	6.4 mm	1 µH	Drum Core Wirewound	AEC-Q200	20 %	45 MHz	48 A	100 kHz	2.3 mOhm
Bourns Inc. SRP1265A-6R0M	-55 C -40 C	150 °C	Surface Mount	10 mOhm	Carbonyl Powder	20 100 kHz	Nonstandard	12 Amps	Shielded	12.5 mm	13.5 mm	0.531 in	0.492 "	0.252 in	6.4 mm	6 ÁH	Drum Core Wirewound	AEC-Q200	20 %	14 MHz	23 A	100 kHz
Bourns Inc. SRP1265A-1R5M	-55 C -40 C	150 °C	Surface Mount		Carbonyl Powder	20 100 kHz	Nonstandard	27 A	Shielded	12.5 mm	13.5 mm	0.531 in	0.492 "	0.252 in	6.4 mm	1.5 µH	Drum Core Wirewound	AEC-Q200	20 %	30 MHz	45 A	100 kHz	3 mOhm
Bourns Inc. SRP1265A-R82M	-55 C -40 C	150 °C	Surface Mount	1.9 mOhm	Carbonyl Powder	15 100 kHz	Nonstandard	33 A	Shielded	12.5 mm	13.5 mm	0.531 in	0.492 "	0.252 in	6.4 mm	820 nH	Drum Core Wirewound	AEC-Q200	20 %	50 MHz	50 A	100 kHz
Bourns Inc. SRP1265A-8R2M	-55 C	150 °C	Surface Mount	15.5 mOhm	Carbonyl Powder	20 100 kHz	Nonstandard	10.5 A	Shielded	12.5 mm	13.5 mm	0.531 in	0.492 "	0.252 in	6.4 mm	8.2 µH	Drum Core Wirewound	AEC-Q200	20 %	11 MHz	16 A	100 kHz
Bourns Inc. SRP1265A-R22M	-55 C -40 C	150 °C	Surface Mount	0.6 mOhm	Carbonyl Powder	10 100 kHz	Nonstandard	53 A	Shielded	12.5 mm	13.5 mm	0.531 in	0.492 "	0.252 in	6.4 mm	220 nH	Drum Core Wirewound	AEC-Q200	20 %	130 MHz	112 A	100 kHz
