630-3W3 Series
Manufacturer: EDAC Inc.
Beta
⌘K

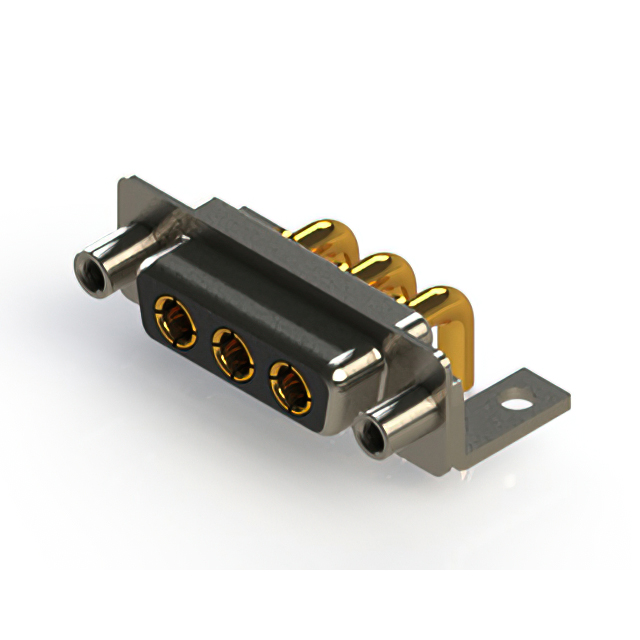

CONN D-SUB RCPT 3POS R/A SLDR
| Part | Dielectric Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Contact Material | Features | Flange Feature | Termination | Connector Style | Contact Finish | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Shell Size, Connector Layout | Number of Positions | Connector Type | Backset Spacing | Backset Spacing | Contact Type | Current Rating (Amps) | Mounting Type | Material Flammability Rating | Shell Material, Finish | Flange Feature | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | Black | -55 C | 125 °C | 125 VDC | Copper Alloy | Board Lock Mounting Brackets | M3 | Solder | Combo D-Sub | Gold | 1 | 30 Áin | 0.76 Ám | 2 (DA A) - 3W3 | 3 | Receptacle Female Sockets | 0.52 " | 13.2 mm | Power | 30 A | Right Angle Through Hole | UL94 V-0 | |||
 EDAC Inc. | Polyester Thermoplastic | Black | -55 C | 125 °C | 125 VDC | Copper Alloy | Mounting Brackets | Housing/Shell (M3) | Solder | Combo D-Sub | Gold | 1 | 30 Áin | 0.76 Ám | 2 (DA A) - 3W3 | 3 | Receptacle Female Sockets | 0.52 " | 13.2 mm | Power | 40 A | Right Angle Through Hole | UL94 V-0 | |||
 EDAC Inc. | Polyester Thermoplastic | Black | -55 C | 125 °C | 125 VDC | Copper Alloy | Board Lock Mounting Brackets | M3 | Solder | Combo D-Sub | Gold | 1 | 30 Áin | 0.76 Ám | 2 (DA A) - 3W3 | 3 | Receptacle Female Sockets | 0.37 in | 9.4 mm | Coax | Right Angle Through Hole | UL94 V-0 | Nickel Plated Steel | |||
 EDAC Inc. | Polyester Thermoplastic | Black | -55 C | 125 °C | 125 VDC | Copper Alloy | Board Side (M3) | Solder | Combo D-Sub | Gold | 1 | 30 Áin | 0.76 Ám | 2 (DA A) - 3W3 | 3 | Receptacle Female Sockets | 0.52 " | 13.2 mm | Power | 40 A | Right Angle Through Hole | UL94 V-0 | Nickel Plated Steel | |||
 EDAC Inc. | Polyester Thermoplastic | Black | -55 C | 125 °C | 125 VDC | Copper Alloy | Mounting Brackets | Housing/Shell | Solder | Combo D-Sub | Gold | 1 | 30 Áin | 0.76 Ám | 2 (DA A) - 3W3 | 3 | Receptacle Female Sockets | 0.52 " | 13.2 mm | Power | 30 A | Right Angle Through Hole | UL94 V-0 | Nickel Plated Steel | 4-40 | |
 EDAC Inc. | Polyester Thermoplastic | Black | -55 C | 125 °C | 125 VDC | Copper Alloy | Board Lock | 4-40 | Solder | Combo D-Sub | Gold | 1 | 30 Áin | 0.76 Ám | 2 (DA A) - 3W3 | 3 | Receptacle Female Sockets | 0.37 in | 9.4 mm | Coax | Right Angle Through Hole | UL94 V-0 | ||||
 EDAC Inc. | Polyester Thermoplastic | Black | -55 C | 125 °C | 125 VDC | Copper Alloy | Mounting Brackets | M3 | Solder | Combo D-Sub | Gold | 1 | 30 Áin | 0.76 Ám | 2 (DA A) - 3W3 | 3 | Receptacle Female Sockets | 0.52 " | 13.2 mm | Power | 30 A | Right Angle Through Hole | UL94 V-0 | |||
 EDAC Inc. | Polyester Thermoplastic | Black | -55 C | 125 °C | 125 VDC | Copper Alloy | Mounting Brackets | Housing/Shell | Solder | Combo D-Sub | Gold | 1 | 2 (DA A) - 3W3 | 3 | Receptacle Female Sockets | 0.52 " | 13.2 mm | Power | 10 A | Right Angle Through Hole | UL94 V-0 | Nickel Plated Steel | 4-40 | Flash | ||
 EDAC Inc. | Polyester Thermoplastic | Black | -55 C | 125 °C | 125 VDC | Copper Alloy | Mounting Brackets | Housing/Shell (M3) | Solder | Combo D-Sub | Gold | 1 | 2 (DA A) - 3W3 | 3 | Receptacle Female Sockets | 0.37 in | 9.4 mm | Coax | Right Angle Through Hole | UL94 V-0 | Flash | |||||
 EDAC Inc. | Polyester Thermoplastic | Black | -55 C | 125 °C | 125 VDC | Copper Alloy | Board Lock Mounting Brackets | 4-40 | Solder | Combo D-Sub | Gold | 1 | 30 Áin | 0.76 Ám | 2 (DA A) - 3W3 | 3 | Receptacle Female Sockets | 0.37 in | 9.4 mm | Coax | Right Angle Through Hole | UL94 V-0 |
