PPTC101 Series

Catalog

CONN HDR 10POS 0.1 TIN PCB

Part	Contact Material	Insulation Material	Contact Shape	Insulation Height	Insulation Height	Insulation Color	Pitch - Mating	Pitch - Mating	Mounting Type	Fastening Type	Number of Rows	Material Flammability Rating	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post [x]	Connector Type	Termination	Number of Positions	Number of Positions Loaded	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Type	Contact Length - Post	Contact Length - Post

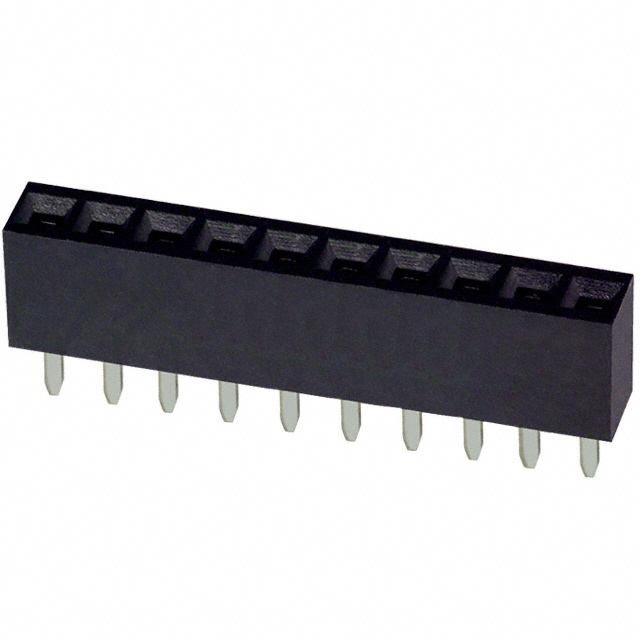

Sullins Connector Solutions PPTC101LFBN-RC	Phosphor Bronze	Polyester	Square	0.335 "	8.51 mm	Black	0.1 "	2.54 mm	Through Hole	Push-Pull	1	UL94 V-0	Tin	0.126 "	3.2 mm	Header	Solder	10	All	3 A	-40 C	105 ░C	250 V	Female Socket

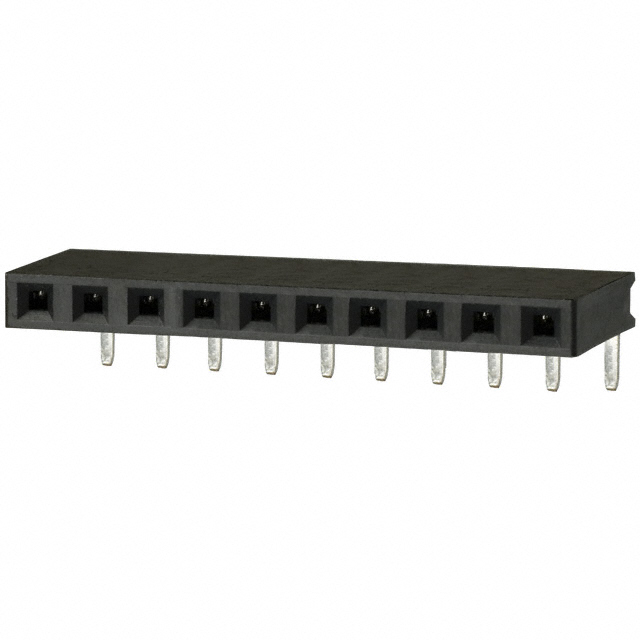

Sullins Connector Solutions PPTC101LGBN	Phosphor Bronze	Polyester	Square	0.1 in	2.54 mm	Black	0.1 "	2.54 mm	Right Angle Through Hole	Push-Pull	1	UL94 V-0	Tin			Header	Solder	10	All	3 A	-40 C	105 ░C	250 V	Female Socket	0.124 in	3.15 mm
Sullins Connector Solutions PPTC101LGBN-RC	Phosphor Bronze	Polyester	Square	0.1 in	2.54 mm	Black	0.1 "	2.54 mm	Right Angle Through Hole	Push-Pull	1	UL94 V-0	Tin			Header	Solder	10	All	3 A	-40 C	105 ░C	250 V	Female Socket	0.124 in	3.15 mm
