GLAA20 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION DPDT 6A 120V
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mechanical Life | Ingress Protection | Actuator Type | Operating Position [x] | Operating Position [x] | Termination Style | Voltage Rating - DC | Pretravel | Pretravel | Switch Function | Circuit | Mounting Type | Overtravel | Overtravel | Current Rating (Amps) | Operating Force | Voltage Rating - AC | Features | Operating Position | Differential Travel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

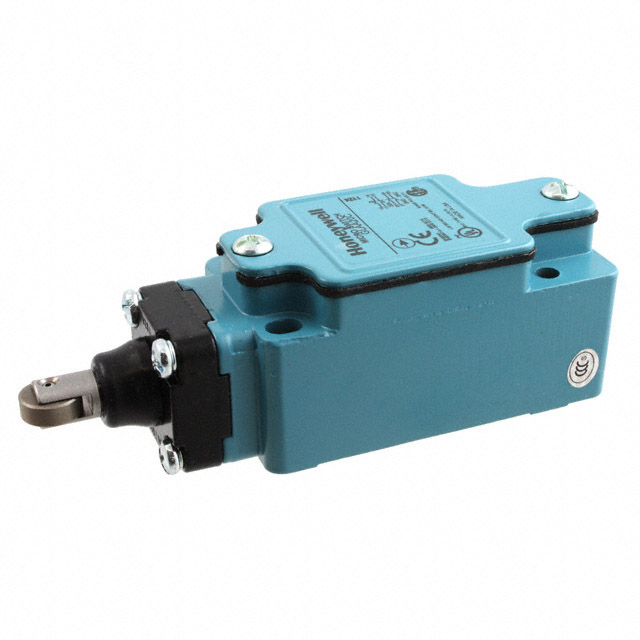

 Honeywell Sensing and Productivity Solutions | -25 °C | 85 °C | 15000000 Cycles | IP67 - Dust Tight Waterproof | Roller Plunger | 48 mm | 1.89 in | Screw Terminal | 125 VDC | 0.1 in | 2.5 mm | On-Mom | DPDT | Chassis Mount | 0.18 in | 4.6 mm | 6 A 550 mA | 1632 gf | 120 V | |||

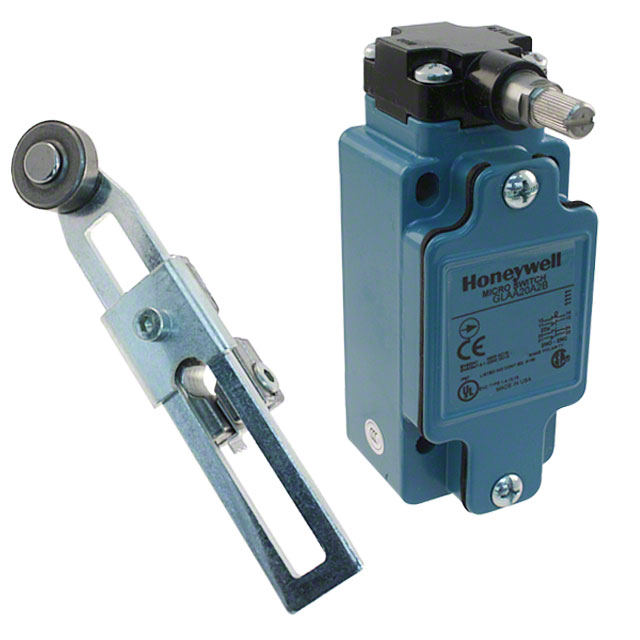

 Honeywell Sensing and Productivity Solutions | -25 °C | 85 °C | 15000000 Cycles | IP67 - Dust Tight Waterproof | Side Rotary Adjustable Roller | Screw Terminal | 125 VDC | 26 ° | On-Mom | DPDT | Chassis Mount | 59 ° | 6 A 550 mA | 33 gfm | 120 V | Steel Roller | 26 ° | 12 ° | ||||
 Honeywell Sensing and Productivity Solutions | -25 °C | 85 °C | 15000000 Cycles | IP67 - Dust Tight Waterproof | Side Rotary - No Lever | Screw Terminal | 125 VDC | 26 ° | On-Mom | DPDT | Chassis Mount | 59 ° | 6 A 550 mA | 33 gfm | 120 V | 26 ° | 12 ° |
