0ZCK Series

Catalog

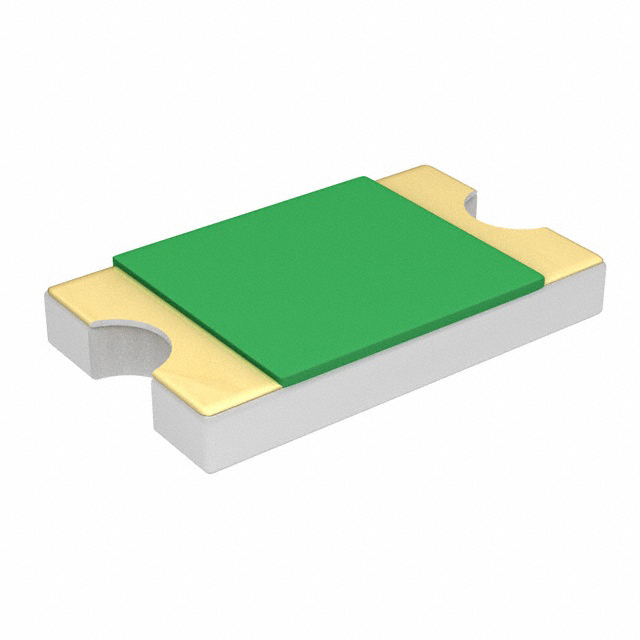

PTC RESET FUSE 6V 500MA 0805

Part	Approval Agency	Grade	Voltage - Max [Max]	Time to Trip	Current - Max [Max]	Resistance - Post Trip (R1) (Max) [Max]	Type	Mounting Type	Current - Hold (Ih) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Qualification	Thickness (Max) [Max]	Thickness (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Package / Case	Current - Trip (It)	Resistance - Initial (Ri) (Min) [Min]
Bel Fuse Inc. 0ZCK0050FF2E	cURus TUV	Automotive	6 V	100 ms	100 A	850 mOhms	Polymeric	Surface Mount	500 mA	85 °C	-40 C	AEC-Q200	1.25 mm	0.049 in	0.085 in	0.053 "	2.15 mm	1.35 mm	0805 Concave	2012	1 A	150 mOhms
Bel Fuse Inc. 0ZCK0100FF2E		Automotive	6 V	0.3 s	40 A	210 mOhms	Polymeric	Surface Mount	1 A	85 °C	-40 C	AEC-Q200	1.8 mm	0.071 in	0.085 in	0.053 "	2.15 mm	1.35 mm	0805 Concave	2012	1.95 A	60 mOhms
