2314826 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

6P,2MM,B-B,REC,DRVT,2.7,0.76AU,T

Part	Termination	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Contact Finish - Mating	Material Flammability Rating	Number of Rows	Features	Current Rating (Amps)	Insulation Material	Contact Shape	Pitch - Mating [x]	Pitch - Mating [x]	Mounting Type	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Number of Positions	Contact Material	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions Loaded	Connector Type	Number of Positions

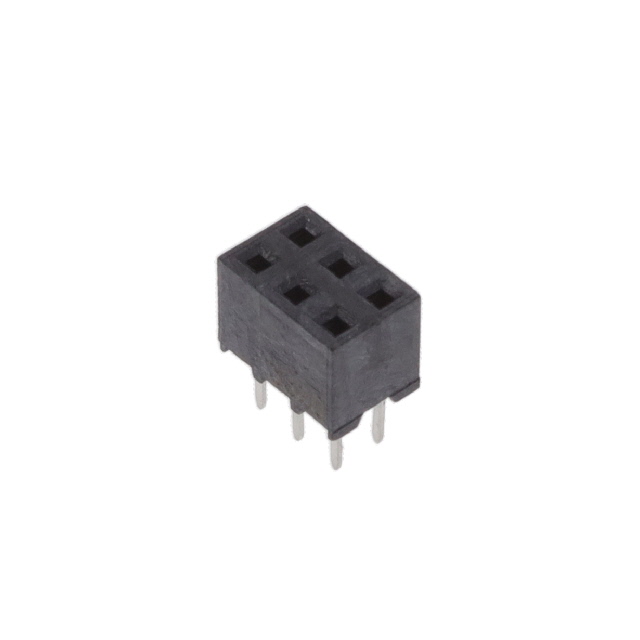

TE Connectivity Raychem Cable Protection 2314826-6	Solder	Tin	30 Áin	0.76 Ám	0.177 in	4.5 mm	Gold	UL94 V-0	2	Pick and Place	2 A	Liquid Crystal Polymer (LCP)	Square	0.079 in	2 mm	Through Hole	Black	0.079 in	2 mm	Female Socket	6	Phosphor Bronze	Push-Pull	0.3 µm	12 µin	125 °C	-40 °C	125 VDC	0.106 in	2.69 mm	All	Receptacle

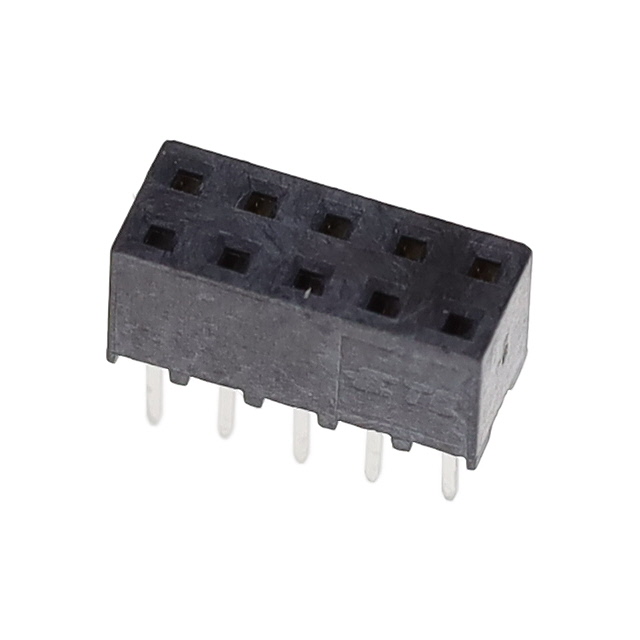

TE Connectivity Raychem Cable Protection 1-2314826-0	Solder	Tin	30 Áin	0.76 Ám	0.177 in	4.5 mm	Gold	UL94 V-0	2	Pick and Place	2 A	Liquid Crystal Polymer (LCP)	Square	0.079 in	2 mm	Through Hole	Black	0.079 in	2 mm	Female Socket	10	Phosphor Bronze	Push-Pull	3 µm	118.1 µin	125 °C	-40 °C	125 VDC	0.106 in	2.69 mm	All	Receptacle
TE Connectivity Raychem Cable Protection 2-2314826-0	Solder	Tin	30 Áin	0.76 Ám	0.177 in	4.5 mm	Gold	UL94 V-0	2	Pick and Place	2 A	Liquid Crystal Polymer (LCP)	Square	0.079 in	2 mm	Through Hole	Black	0.079 in	2 mm	Female Socket	20	Phosphor Bronze	Push-Pull	3 µm	118.1 µin	125 °C	-40 °C	125 VDC	0.106 in	2.69 mm	All	Receptacle

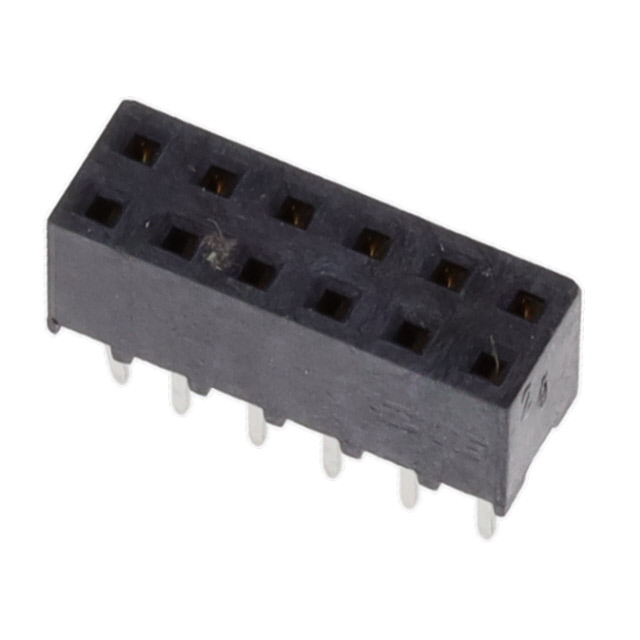

TE Connectivity Raychem Cable Protection 1-2314826-2	Solder	Tin	30 Áin	0.76 Ám	0.177 in	4.5 mm	Gold	UL94 V-0	2	Pick and Place	2 A	Liquid Crystal Polymer (LCP)	Square	0.079 in	2 mm	Through Hole	Black	0.079 in	2 mm	Female Socket	12	Phosphor Bronze	Push-Pull	0.3 µm	12 µin	125 °C	-40 °C	125 VDC	0.106 in	2.69 mm	All	Receptacle

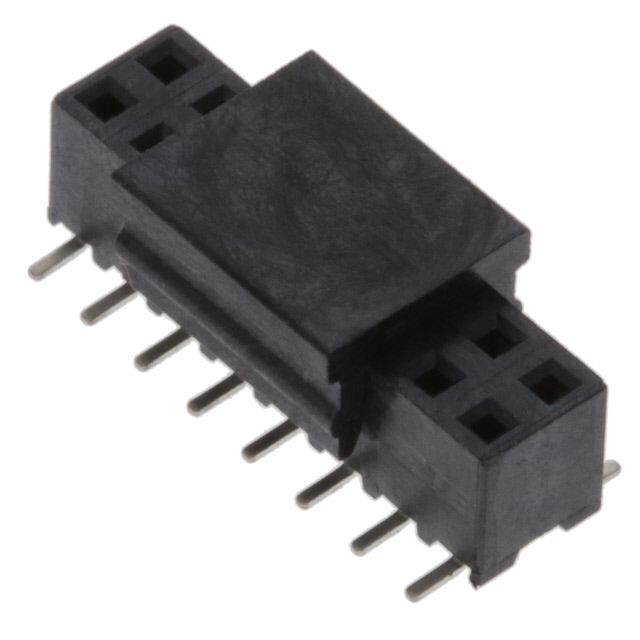

TE Connectivity Raychem Cable Protection 1-2314826-6	Solder	Tin	30 Áin	0.76 Ám	0.177 in	4.5 mm	Gold	UL94 V-0	2	Pick and Place	2 A	Liquid Crystal Polymer (LCP)	Square	0.079 in	2 mm	Through Hole	Black	0.079 in	2 mm	Female Socket		Phosphor Bronze	Push-Pull	3 µm	118.1 µin	125 °C	-40 °C	125 VDC	0.106 in	2.69 mm	All	Receptacle	16

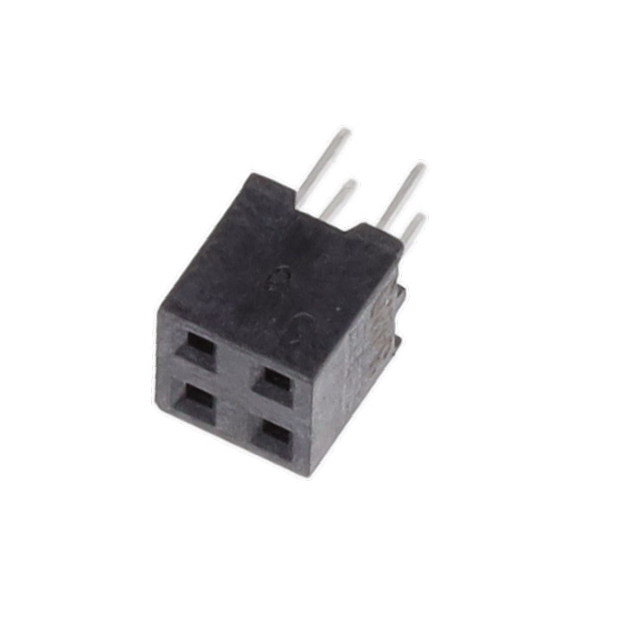

TE Connectivity Raychem Cable Protection 2314826-4	Solder	Tin	30 Áin	0.76 Ám	0.177 in	4.5 mm	Gold	UL94 V-0	2	Pick and Place	2 A	Liquid Crystal Polymer (LCP)	Square	0.079 in	2 mm	Through Hole	Black	0.079 in	2 mm	Female Socket	4	Phosphor Bronze	Push-Pull	3 µm	118.1 µin	125 °C	-40 °C	125 VDC	0.106 in	2.69 mm	All	Receptacle
