SMKDSP Series

Catalog

FIXED TERMINAL BLOCKS SMKDSP 1 5/ 5-5 08

Part	Positions Per Level	Voltage	Number of Levels	Color	Pitch	Pitch	Mating Orientation	Mating Orientation	Mounting Type	Current	Wire Termination	Wire Gauge [Max]	Wire Gauge [Min]	Features	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Torque - Screw [Max]	Housing Material	Screw Thread
Phoenix Contact 1733606	5	300 VDC	1	Green	5.08 mm	0.2 in	55 °	125 °	Through Hole	15 A	Screw - Rising Cage Clamp	30 AWG	14 AWG	Interlocking (Side)

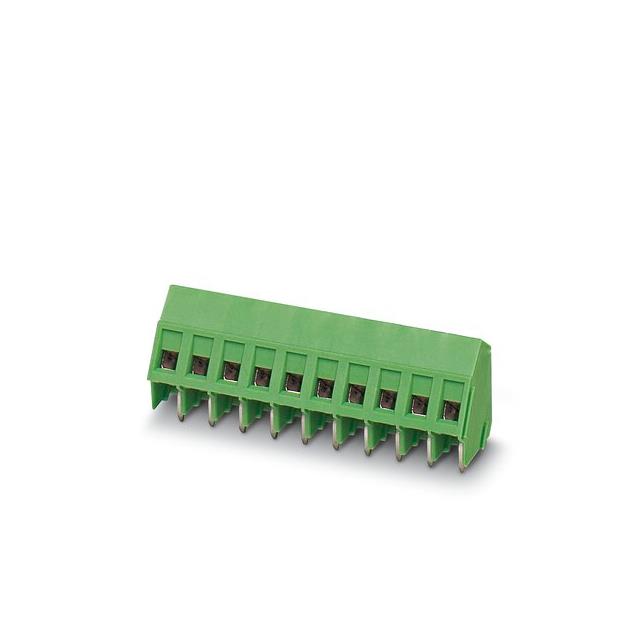

Phoenix Contact 1708044	14	300 VDC	1	Green	5.08 mm	0.2 in	55 °	125 °	Through Hole	15 A	Screw - Rising Cage Clamp	30 AWG	14 AWG	Interlocking (Side)	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	Polyamide (PA) Nylon	M3
Phoenix Contact 1733431	4	300 VDC	1	Green	5 mm	0.197 in	55 °	125 °	Through Hole	15 A	Screw - Rising Cage Clamp	30 AWG	14 AWG	Interlocking (Side)	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	Polyamide (PA) Nylon	M3

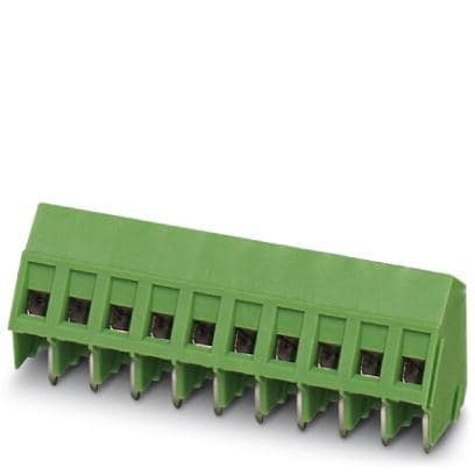

Phoenix Contact 1906459	2	300 VDC	1	Black	5.08 mm	0.2 in	55 °	125 °	Through Hole	15 A	Screw - Rising Cage Clamp	30 AWG	14 AWG	Interlocking (Side)	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	Polyamide (PA) Nylon	M3
Phoenix Contact 1733648	9	300 VDC	1	Green	5.08 mm	0.2 in	55 °	125 °	Through Hole	15 A	Screw - Rising Cage Clamp	30 AWG	14 AWG	Interlocking (Side)	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	Polyamide (PA) Nylon	M3
Phoenix Contact 1733677	12	300 VDC	1	Green	5.08 mm	0.2 in	55 °	125 °	Through Hole	15 A	Screw - Rising Cage Clamp	30 AWG	14 AWG	Interlocking (Side)
Phoenix Contact 1986848	2	300 VDC	1	Gray	5 mm	0.197 in	55 °	125 °	Through Hole	15 A	Screw - Rising Cage Clamp	30 AWG	14 AWG	Interlocking (Side)
Phoenix Contact 1757536	14	300 VDC	1	Green	5 mm	0.197 in	55 °	125 °	Through Hole	15 A	Screw - Rising Cage Clamp	30 AWG	14 AWG	Interlocking (Side)
