SFSA032 Series

Manufacturer: SWISSBIT

Catalog

SSD, INTERNAL, M.2 2280, SATA 6 GB/S (SATA III), 32 GB, SLC NAND, NON-ENCRYPTED

Part	Speed - Write	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Memory Size	Memory Type	Voltage - Supply	Form Factor	Speed - Read	Type	Current - Max [Max]	Weight	Weight	Form Factor	Weight [custom]	Weight [custom]

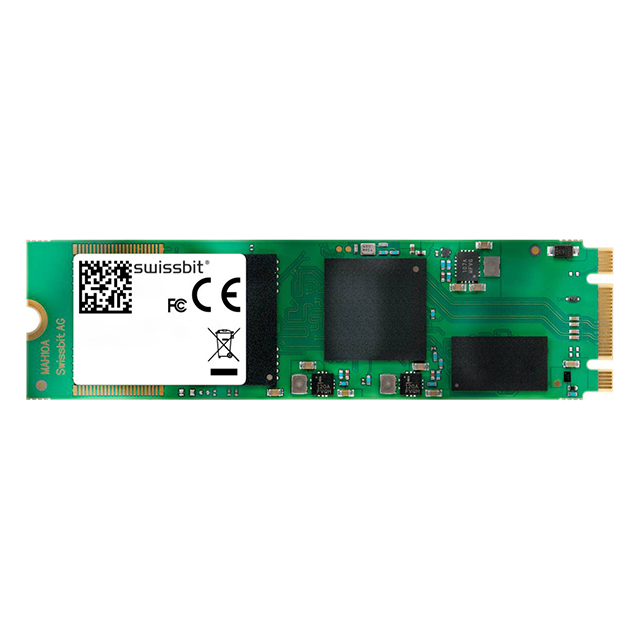

SWISSBIT SFSA032GM3AA4TO-C-DB-626-STD	250 MB/s	80 mm	22 mm	3.58 mm	70 °C	0 °C	32 GB	Solid State Drive (SSD) FLASH - NAND (SLC)	3.3 V	M.2 Module	520 MB/s	SATA III
SWISSBIT SFSA032GV3AA4TO-C-DB-226-STD	250 MB/s	54 mm	39 mm	4 mm	70 °C	0 °C	32 GB	Solid State Drive (SSD) FLASH - NAND (SLC)	3.3 V 5 VDC	Slim-SATA	520 MB/s	SATA III

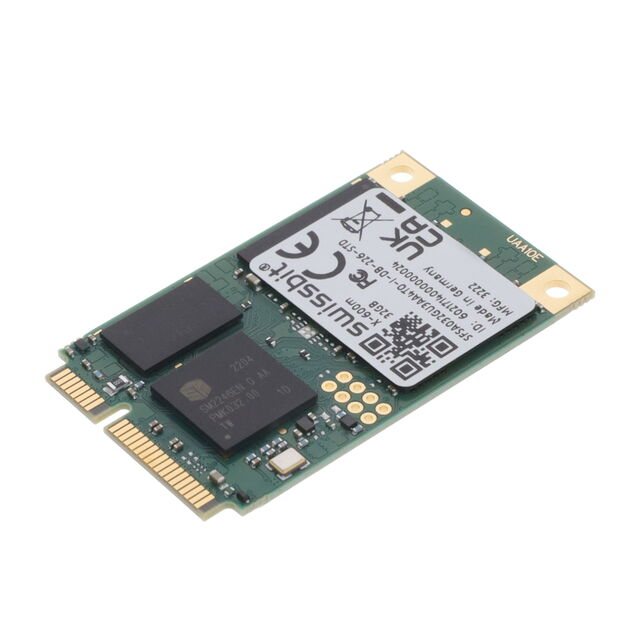

SWISSBIT SFSA032GU3AA4TO-I-DB-226-STD	250 MB/s	2 in	29.85 mm	3.5 mm	85 °C	-40 C	32 GB	Solid State Drive (SSD) FLASH - NAND (SLC)	3.3 V	mSATA	520 MB/s	SATA III
SWISSBIT SFSA032GM3AA2TO-C-QC-226-STD	245 MB/s	42 mm	22 mm	3.58 mm	70 °C	0 °C	32 GB	Solid State Drive (SSD) FLASH - NAND (SLC)	3.3 V	M.2 Module	520 MB/s	SATA III
SWISSBIT SFSA032GM1AA4TO-C-DB-416-STD	250 MB/s	60 mm	22 mm	3.3 mm	70 °C	0 °C	32 GB	Solid State Drive (SSD) FLASH - NAND (SLC)	3.3 V	M.2 Module	520 MB/s	SATA III	515 mA
SWISSBIT SFSA032GM3AA4TO-C-DB-426-STD	250 MB/s	60 mm	22 mm	3.58 mm	70 °C	0 °C	32 GB	Solid State Drive (SSD) FLASH - NAND (SLC)	3.3 V	M.2 Module	520 MB/s	SATA III
SWISSBIT SFSA032GV1AA4TO-I-DB-216-STD	250 MB/s	54 mm	39 mm	4 mm	85 °C	-40 C	32 GB	Solid State Drive (SSD) FLASH - NAND (SLC)		Slim-SATA	520 MB/s	SATA III	405 mA	10 g	0.353 oz
SWISSBIT SFSA032GM3AA4TO-I-DB-626-STD	250 MB/s	80 mm	22 mm	3.58 mm	85 °C	-40 C	32 GB	Solid State Drive (SSD) FLASH - NAND (SLC)	3.3 V	M.2 Module	520 MB/s	SATA III
SWISSBIT SFSA032GM1AA4TO-I-DB-616-STD	250 MB/s	80 mm	22 mm	3.3 mm	85 °C	-40 C	32 GB	Solid State Drive (SSD) FLASH - NAND (SLC)	3.3 V	M.2 Module	520 MB/s	SATA III	515 mA

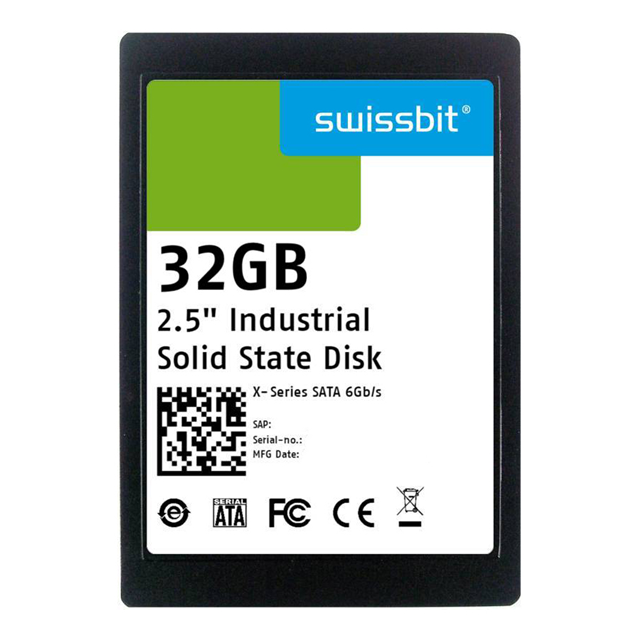

SWISSBIT SFSA032GQ1BJATO-I-DT-236-STD	162 MB/s	100.2 mm	2.75 in	9.3 mm	85 °C	-40 C	32 GB	Solid State Drive (SSD) FLASH - NAND (SLC)			228 MB/s	SATA II	420 mA			2.5 "	2.82 oz	80.36 g
