ABUP Series
Manufacturer: Pulse Electronics
Beta
⌘K

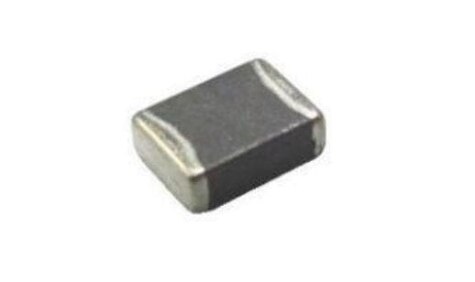

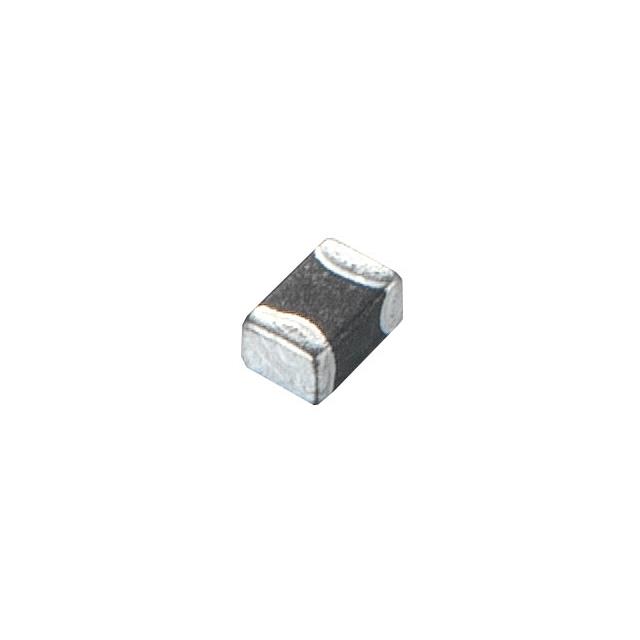

FERRITE BEADS CHILISIN EMI BEAD FILETER FOR ULTRA HIGH CURRENT USEUNDER 1 GHZ
| Part | Features | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Max) [Max] | DC Resistance (DCR) (Max) [Max] | Ratings | Package / Case | Filter Type | Impedance @ Frequency | Mounting Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Number of Lines | Height (Max) [Max] [z] | Height (Max) [z] | DC Resistance (DCR) (Max) | Height (Max) [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | Automotive | -55 C | 125 °C | 5 A | 20 mOhm | AEC-Q200 | 0805 | Power Line | 100 Ohms | Surface Mount | 2 mm | 1.25 mm | 0.049 " | 0.079 in | 1 | 0.043 in | 1.1 mm | ||
 Pulse Electronics | Automotive | -55 C | 125 °C | 2.5 A | 32 mOhm | AEC-Q200 | 0402 (1005 Metric) | Power Line | 60 Ohms | Surface Mount | 1 mm | 0.5 mm | 0.02 in | 0.039 " | 1 | 0.024 in 0.6 mm | |||
 Pulse Electronics | Automotive | -55 C | 125 °C | 6 A | AEC-Q200 | 1206 (3216 Metric) | Power Line | 120 Ohms | Surface Mount | 3.2 mm | 1.6 mm | 0.063 " | 0.126 " | 1 | 1.3 mm | 12 mOhm | 0.051 in | ||
Pulse Electronics | Automotive | -55 C | 125 °C | 20 mOhm | AEC-Q200 | 1206 (3216 Metric) | Power Line | 150 Ohms | Surface Mount | 3.2 mm | 1.6 mm | 0.063 " | 0.126 " | 1 | 1.3 mm | 0.051 in |
