E2E-X30 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K

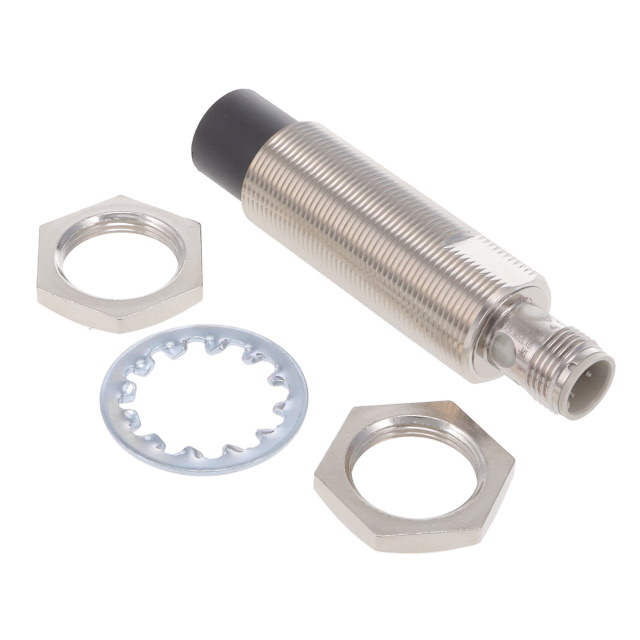

SENSOR INDUCT 30MM PNP M30 NC
| Part | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Material - Body | Sensing Distance | Sensing Distance | Output Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Indicator [custom] | Termination Style | Response Frequency | Ingress Protection | Sensor Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div | Unshielded | 85 °C | -40 °C | Nickel-Plated Brass | 1.181 in | 30 mm | PNP-NC 3-Wire | 30 VDC | 10 VDC | LED | Cable Leads | 100 Hz | IP67 IP69K | Inductive | Cylinder Threaded - M30 |
 Omron Electronics Inc-EMC Div | Unshielded | 70 °C | -25 °C | Nickel-Plated Brass | 1.181 in | 30 mm | PNP-NC 3-Wire | 30 VDC | 10 VDC | LED | Connector | 200 Hz | IP67 IP69K | Inductive | Cylinder Threaded - M18 |
Omron Electronics Inc-EMC Div | Unshielded | 85 °C | -40 °C | Nickel-Plated Brass | 1.181 in | 30 mm | PNP-NC/NO 3-Wire | 30 VDC | 10 VDC | LED | Cable Leads | 100 Hz | IP67 IP69K | Inductive | Cylinder Threaded - M30 |
Omron Electronics Inc-EMC Div | Unshielded | 85 °C | -40 °C | Nickel-Plated Brass | 1.181 in | 30 mm | PNP-NC 3-Wire | 30 VDC | 10 VDC | LED | Connector | 100 Hz | IP67 IP69K | Inductive | Cylinder Threaded - M30 |
Omron Electronics Inc-EMC Div | Unshielded | 85 °C | -40 °C | Nickel-Plated Brass | 1.181 in | 30 mm | NPN-NC 3-Wire | 30 VDC | 10 VDC | LED | Cable Leads | 100 Hz | IP67 IP69K | Inductive | Cylinder Threaded - M30 |
Omron Electronics Inc-EMC Div | Unshielded | 70 °C | -25 °C | Nickel-Plated Brass | 1.181 in | 30 mm | NPN-NO 3-Wire | 30 VDC | 10 VDC | LED | Cable with Connector | 100 Hz | IP67 IP69K | Inductive | Cylinder Threaded - M30 |
Omron Electronics Inc-EMC Div | Unshielded | 70 °C | -25 °C | Nickel-Plated Brass | 1.181 in | 30 mm | PNP-NO 3-Wire | 30 VDC | 10 VDC | LED | Cable with Connector | 100 Hz | IP67 IP69K | Inductive | Cylinder Threaded - M30 |
Omron Electronics Inc-EMC Div | Unshielded | 85 °C | -40 °C | Nickel-Plated Brass | 1.181 in | 30 mm | PNP-NO 3-Wire | 30 VDC | 10 VDC | LED | Cable Leads | 100 Hz | IP67 IP69K | Inductive | Cylinder Threaded - M30 |
Omron Electronics Inc-EMC Div | Unshielded | 70 °C | -25 °C | Nickel-Plated Brass | 1.181 in | 30 mm | NPN-NO 3-Wire | 30 VDC | 10 VDC | LED | Cable Leads | 200 Hz | IP67 IP69K | Inductive | Cylinder Threaded - M18 |
Omron Electronics Inc-EMC Div | Unshielded | 85 °C | -40 °C | Nickel-Plated Brass | 1.181 in | 30 mm | PNP-NC/NO 3-Wire | 30 VDC | 10 VDC | LED | Connector | 100 Hz | IP67 IP69K | Inductive | Cylinder Threaded - M30 |
