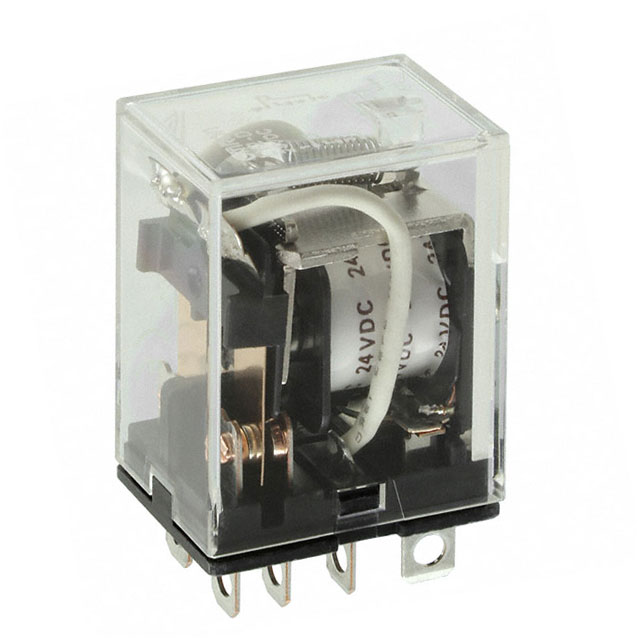

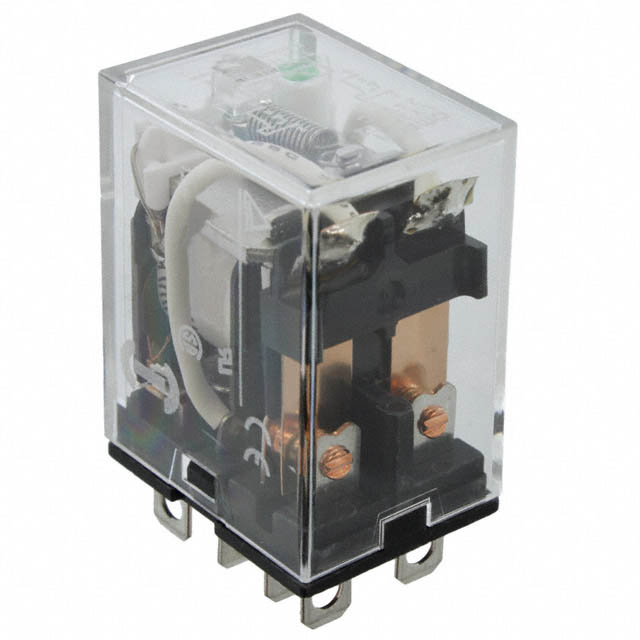

LY2-D-D Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE DPDT 10A 110V
| Part | Must Operate Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Load - Max Switching | Approval Agency | Switching Voltage | Coil Voltage | Relay Type | Release Time | Coil Resistance | Termination Style | Coil Current | Contact Rating (Current) | Must Release Voltage | Contact Material | Features | Operate Time | Contact Form | Coil Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 88 VDC | 55 °C | -25 °C | 1250 W 2500 VA | CE CSA TUV UR | 125 VDC 250 VAC | 110 VDC | General Purpose | 25 ms | 11000 Ohms | Plug In | 10 mA | 10 A | 11 VDC | Silver Alloy | Diode | 25 ms | DPDT (2 Form C) | Non Latching | Socketable |
 Omron Electronics Inc-EMC Div | 19.2 VDC | 55 °C | -25 °C | 1250 W 2500 VA | CE CSA TUV UR | 125 VDC 250 VAC | 24 VDC | General Purpose | 25 ms | 650 Ohms | Plug In | 36.9 mA | 10 A | 2.4 VDC | Silver Alloy | Diode | 25 ms | DPDT (2 Form C) | Non Latching | Socketable |
