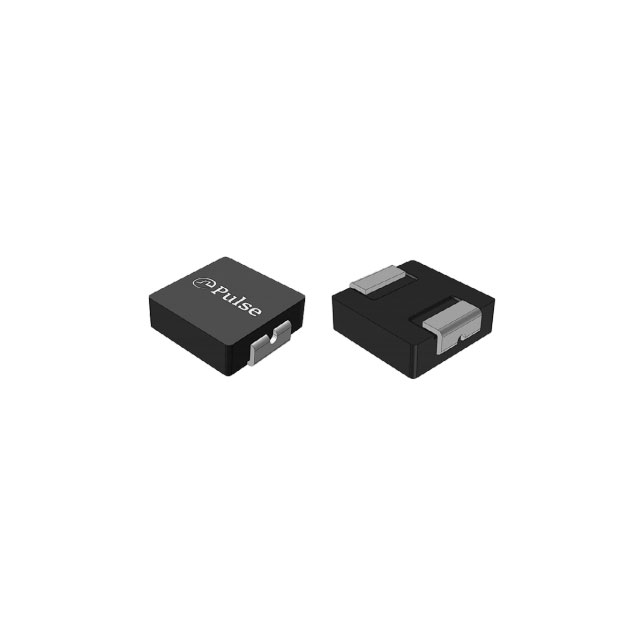

PA5401 Series
Manufacturer: Pulse Electronics
Beta
⌘K
POWER INDUCTORS - SMD 0.6UH SHIELDED 20% 7.5A 28MOHMS
| Part | Inductance | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Current Rating (Amps) | Current - Saturation (Isat) | Package / Case | Inductance Frequency - Test | DC Resistance (DCR) | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Mounting Type | Type | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | 600 nH | 0.138 in | 0.126 in | 3.5 mm | 3.2 mm | -55 C | 125 °C | Shielded | 6 A | 7.5 A | Nonstandard | 100 kHz | 28 mOhm | 0.079 in | 2 mm | Surface Mount | Molded | 20 % |
