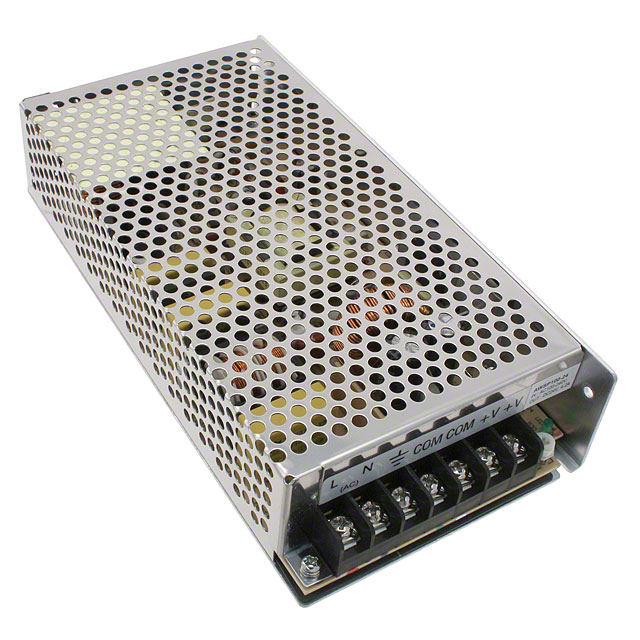

AWSP100 Series
Manufacturer: Triad Magnetics
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
SWITCHING POWER SUPPLIES SWITCHMODE POWER SUPPLY - INPUT: 85-264VACA.50/60HZ. OUTPUT: 12VDC, 8.4 AMP, 100W. SAFETY APPROVALS: CRU, RU, TUV, CE
| Part | Number of Outputs | Power (Watts) | Size / Dimension Width | Size / Dimension Length | Size / Dimension Height | Efficiency | Mounting Type | Voltage - Output 1 | Operating Temperature (Max) | Operating Temperature (Min) | Voltage - Input (AC) Maximum | Voltage - Input (AC) Minimum | Type | Approval Agency | Voltage - Isolation | Features | Current - Output 1 | Applications | Minimum Load Required |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Triad Magnetics | 1 | 100 W | 3.86 in | 7.83 in | 1.65 in | 80 % | Chassis Mount | 12 V | 60 °C | -10 °C | 264 V | 88 VAC | Enclosed | TUV UR | 3 kV | Adjustable Output Universal Input | 8.4 A | ITE (Commercial) | No |
