678004 Series

Catalog

CONN HEADER VERT 14POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Material Flammability Rating	Number of Rows [custom]	Contact Finish - Post	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Shrouding	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Overall Contact Length	Overall Contact Length	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Features	Pitch - Mating	Pitch - Mating	Number of Positions	Fastening Type	Insulation Color	Contact Length - Post [custom]	Contact Length - Post	Contact Length - Mating [x]	Contact Length - Mating [x]	Connector Type	Termination	Mounting Type	Contact Type	Contact Shape	Contact Finish - Mating

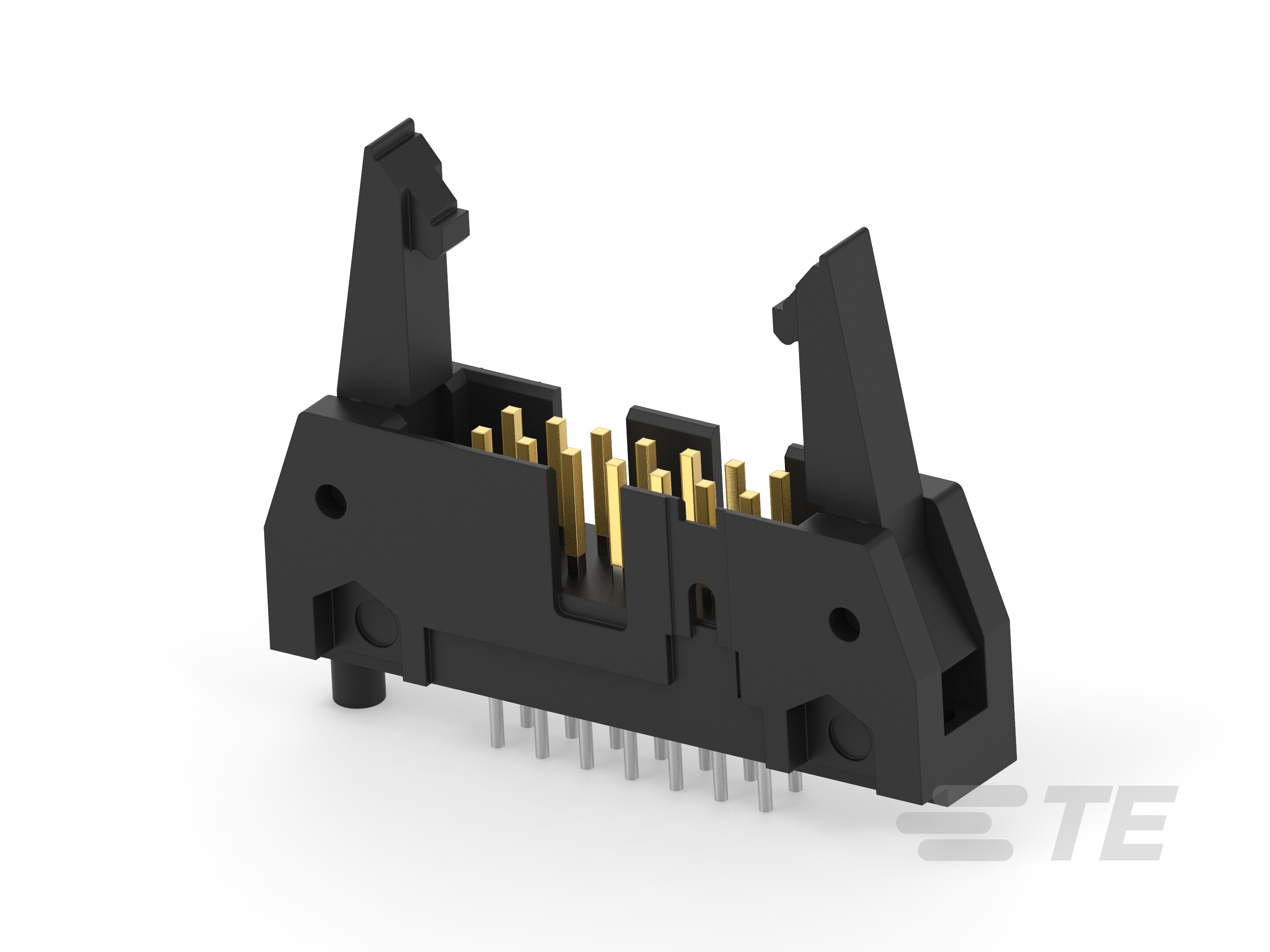

TE Connectivity AMP Connectors 678004-2	2.54 µm	100 µin	1 A	UL94 V-0	2	Tin-Lead	250 VAC	0.38 µm	15 µin	Board to Cable/Wire	Shrouded - 4 Wall	All	105 ░C	-65 ░C	0.639 in	16.23 mm	0.549 in	13.94 mm	0.1 in	2.54 mm	Board Guide Keying Slot	0.1 "	2.54 mm	14	Latch Lock/Eject Hooks	Black	0.11 in	2.79 mm	0.24 in	6.1 mm	Header	Solder	Through Hole	Male Pin	Square	Gold or Gold-Palladium
