TLE7182 Series
Manufacturer: INFINEON
Beta
⌘K

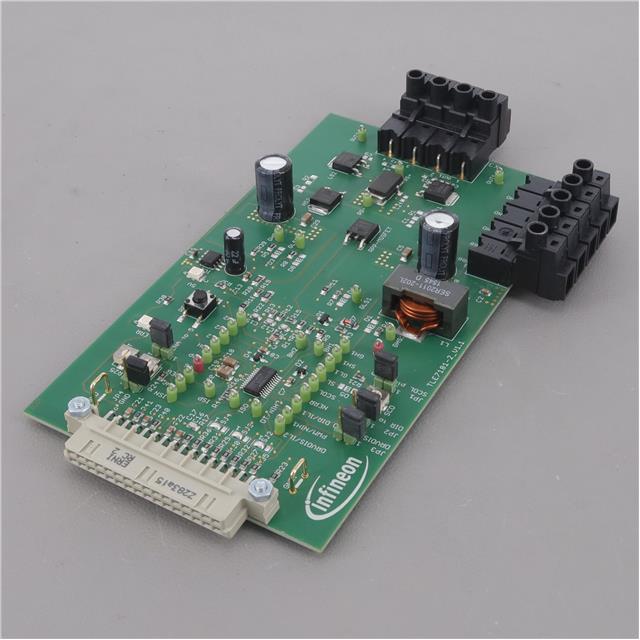

EVAL BOARD FOR TLE7182EM
| Part | Supplied Contents | Function | Utilized IC / Part | Contents | Type | Gate Type | Input Type | Rise / Fall Time (Typ) [custom] | Rise / Fall Time (Typ) [custom] | Channel Type | Number of Drivers | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Voltage - Supply [Max] | Voltage - Supply [Min] | High Side Voltage - Max (Bootstrap) [Max] | Driven Configuration | Logic Voltage - VIL, VIH |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | Board(s) | Gate Driver | TLE7182EM | Board(s) | Power Management | |||||||||||||||
 INFINEON | MOSFET (N-Channel) N-Channel MOSFET | Inverting Non-Inverting | 200 ns | 250 ns | Synchronous | 4 | 24-LSSOP (0.154" 3.90mm Width) Exposed Pad | -40 °C | 150 °C | Surface Mount | 34 VDC | 7 V | 55 V | Half-Bridge | 1 V 2 V |
