45523 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

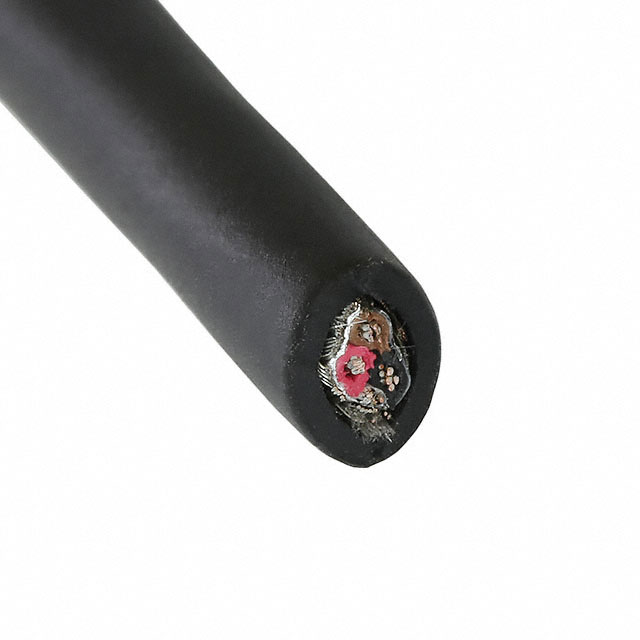

CABLE 3COND 18AWG BLK SHLD 1000'
| Part | Shield Material | Shield Coverage | Features | Operating Temperature [Max] | Operating Temperature [Min] | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Conductor Insulation | Wire Gauge | Length | Length | Jacket Color | Shield Type | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Conductor Material | Ratings | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Suprashield® | 70 % 100 % | Biological Compatibility Drain Wire Rip Cord | 125 °C | -50 °C | 600 V | 0.381 in | 9.68 mm | TPE | Thermoplastic Elastomer | 18 AWG | 304.8 m | 1000 ft | Black | Braid Foil | Multi-Conductor | 16 | 30 AWG | Thermoplastic Elastomer (TPE) | Copper Tinned | ISO 10993 | 3 | 1.397 mm | 0.055 in |
ALPHA WIRE | Aluminum Suprashield® | 70 % 100 % | Biological Compatibility Drain Wire Rip Cord | 125 °C | -50 °C | 600 V | 0.381 in | 9.68 mm | TPE | Thermoplastic Elastomer | 18 AWG | 304.8 m | 1000 ft | Black | Braid Foil | Multi-Conductor | 16 | 30 AWG | Thermoplastic Elastomer (TPE) | Copper Tinned | ISO 10993 | 3 | 1.397 mm | 0.055 in |
