Sigma BMC Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

Catalog

FERRITE BEAD 70 OHM 0402 1LN

...

Part	DC Resistance (DCR) (Max) [Max]	Package / Case	Current Rating (Max) [Max]	Height (Max) [z]	Filter Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Impedance @ Frequency	Number of Lines	Height (Max) [z]	Package / Case	Size / Dimension [y]	Height (Max) [z]	Height (Max) [Max] [z]

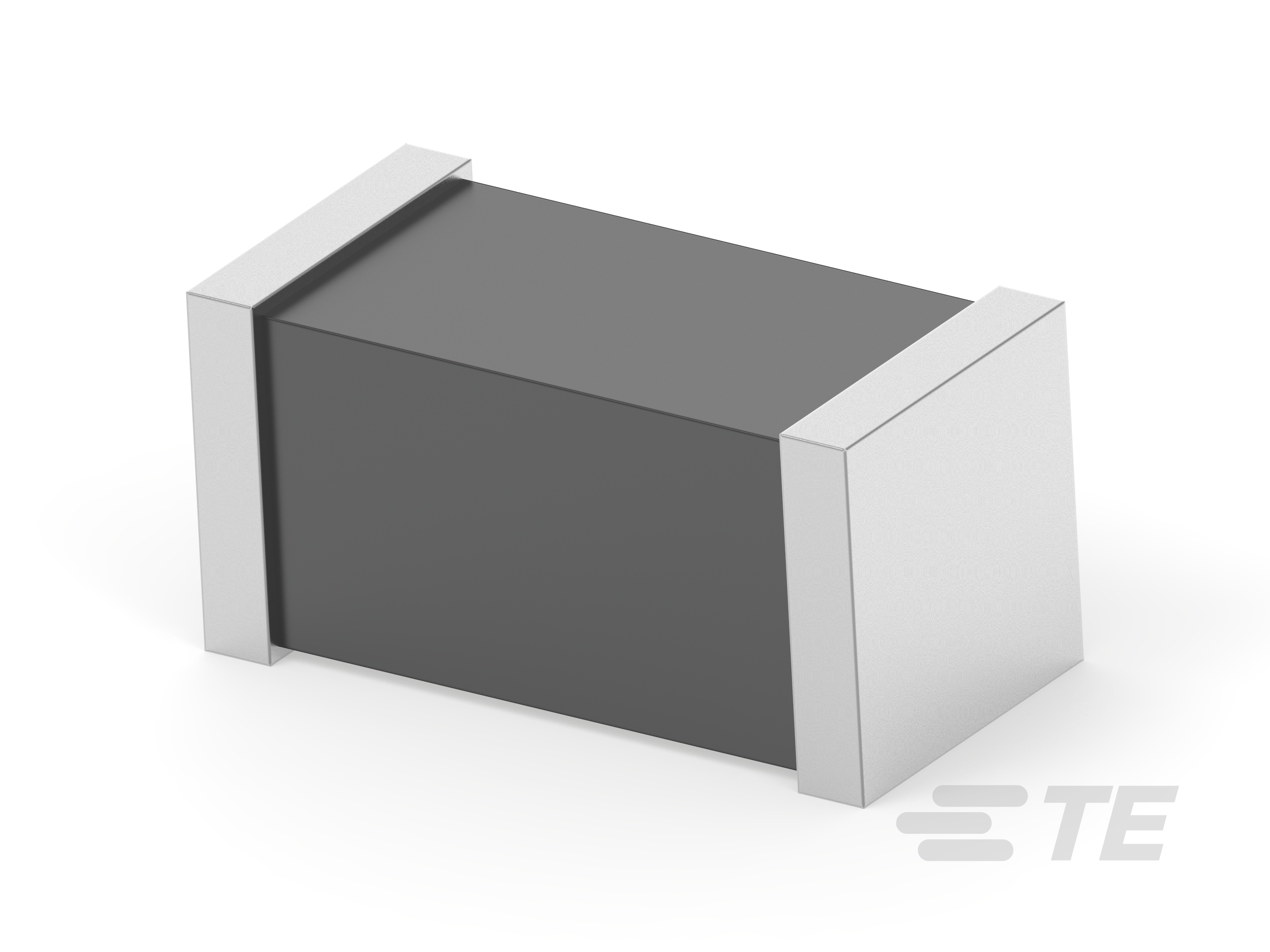

TE Connectivity AMP Connectors BMC1EY0070AN	400 mOhm	0402 (1005 Metric)	200 mA	0.024 in 0.6 mm	Signal Line	0.02 in	0.5 mm	0.039 "	1 mm	-55 C	125 °C	Surface Mount	70 Ohms	1
TE Connectivity AMP Connectors BMC1EY0100AN	450 mOhm	0402 (1005 Metric)	200 mA	0.024 in 0.6 mm	Signal Line	0.02 in	0.5 mm	0.039 "	1 mm	-55 C	125 °C	Surface Mount	100 Ohms	1

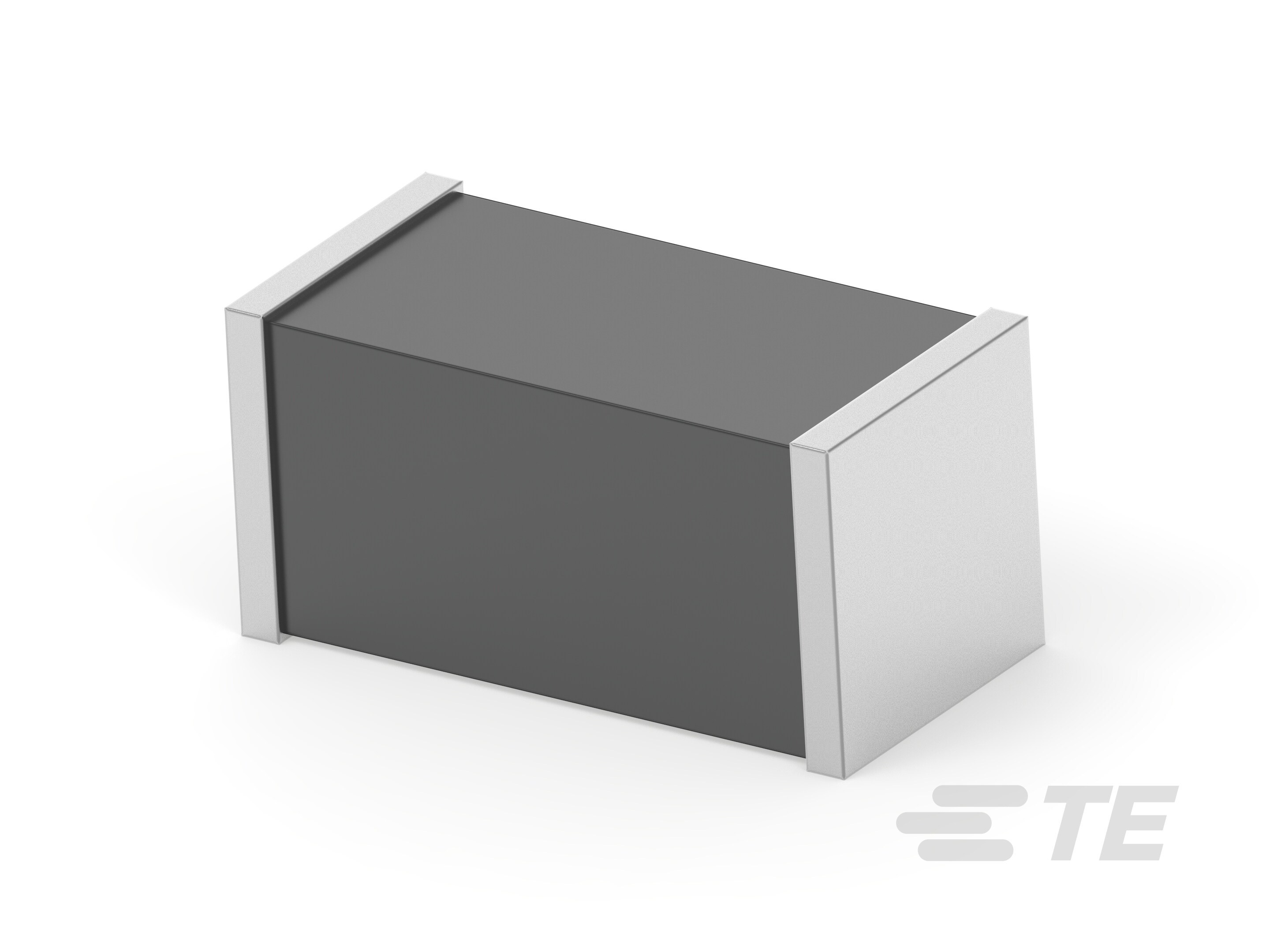

TE Connectivity AMP Connectors BMC1JY0120AN	150 mOhm	0603	400 mA	0.95 mm		0.031 in		0.063 "	1.6 mm	-55 C	125 °C	Surface Mount		1	0.037 in	1608 Metric	0.8 mm
TE Connectivity AMP Connectors BMC1JY0240AN	170 mOhm	0603	500 mA	0.95 mm	Signal Line	0.031 in		0.063 "	1.6 mm	-55 C	125 °C	Surface Mount	240 Ohms	1	0.037 in	1608 Metric	0.8 mm
TE Connectivity AMP Connectors BMC2CY1200AN	350 mOhm	1204	350 mA	1.3 mm	Signal Line	0.063 "	1.6 mm	0.126 "	3.2 mm	-55 C	125 °C	Surface Mount	1200 Ohms	1		3210 Metric		0.051 in
TE Connectivity AMP Connectors BMC1HY0300AN	900 mOhm	0201	150 mA	0.33 mm	Signal Line	0.3 mm	0.012 in	0.6 mm	0.024 in	-55 C	125 °C	Surface Mount	300 Ohms	1		0603 Metric		0.013 in

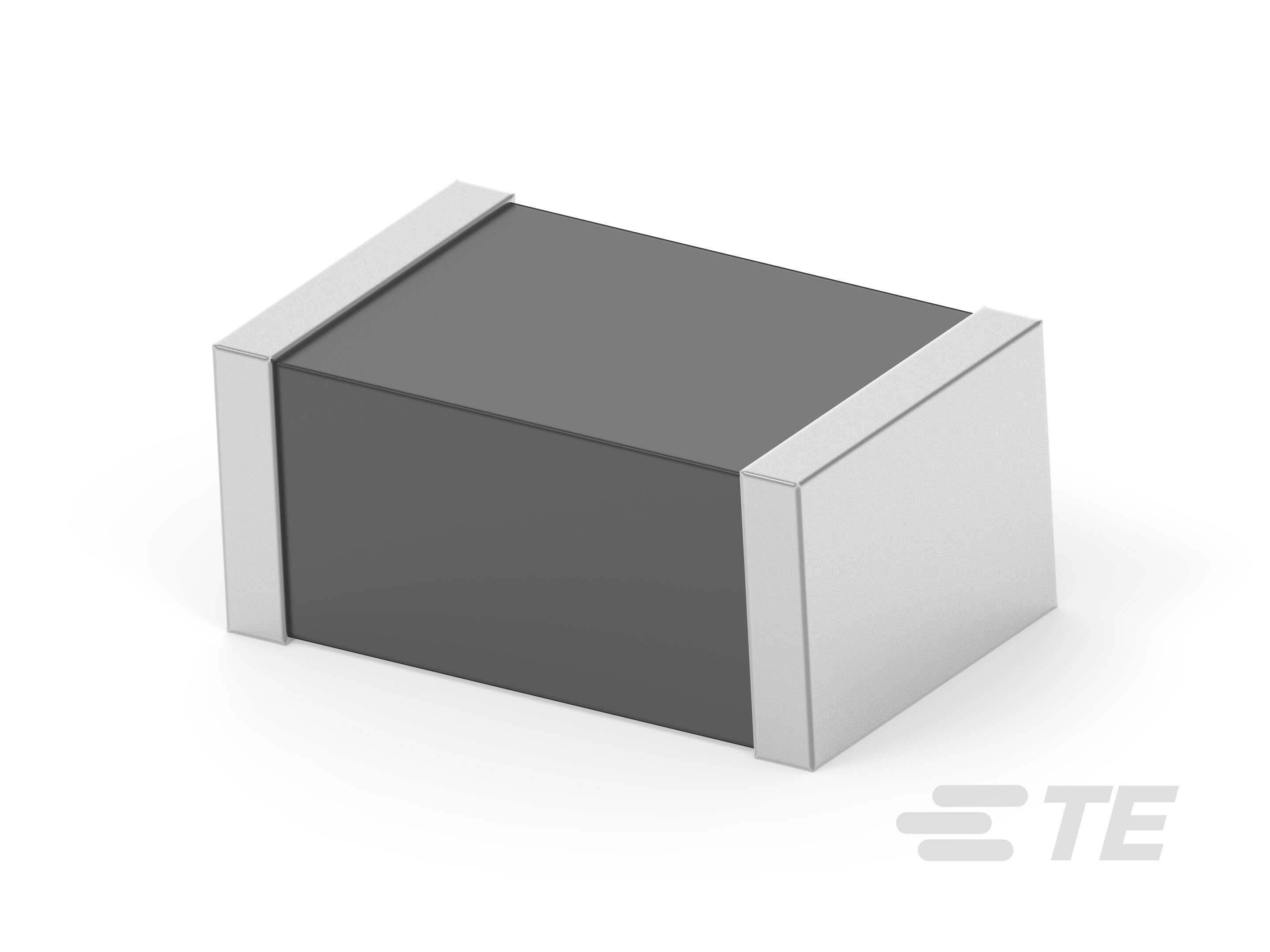

TE Connectivity AMP Connectors BMC2AY0031AN	100 mOhm	0805	300 mA	1.1 mm	Signal Line	0.049 "	1.25 mm	0.079 in	2 mm	-55 C	125 °C	Surface Mount	31 Ohms	1					0.043 in
TE Connectivity AMP Connectors BMC2AY1500AN	700 mOhm	0805	300 mA	1.1 mm	Signal Line	0.049 "	1.25 mm	0.079 in	2 mm	-55 C	125 °C	Surface Mount	1.5 kOhms	1					0.043 in
TE Connectivity AMP Connectors BMC1EY0300AN	750 mOhm	0402 (1005 Metric)	100 mA	0.024 in 0.6 mm	Signal Line	0.02 in	0.5 mm	0.039 "	1 mm	-55 C	125 °C	Surface Mount	300 Ohms	1
TE Connectivity AMP Connectors BMC1HY0100AN	400 mOhm	0201	200 mA	0.33 mm	Signal Line	0.3 mm	0.012 in	0.6 mm	0.024 in	-55 C	125 °C	Surface Mount	100 Ohms	1		0603 Metric		0.013 in
