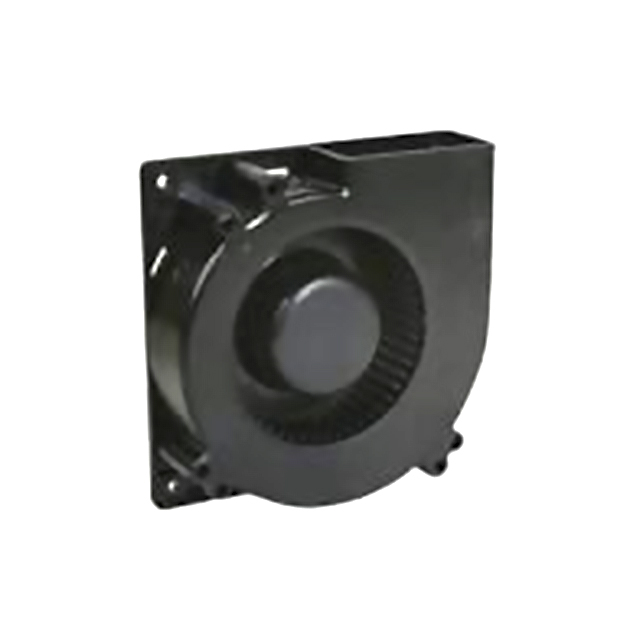

ODB1232 Series

Catalog

FAN BLOWER 120X32MM 48VDC WIRE

Part	Voltage Range [Max]	Voltage Range [Min]	Air Flow	Air Flow	Material - Blade	RPM	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Noise	Fan Type	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Bearing Type	Termination	Width [y]	Voltage - Rated	Static Pressure	Static Pressure	Current Rating (Amps)
ORION FANS ODB1232-48LB	55 VDC	24 VDC	25 CFM	0.7 mł/min	Polybutylene Terephthalate (PBT)	2100 RPM	Square/Rounded	120 mm	120 mm	48 dB	Blower	-20 ░C	70 °C	cURus TUV	Ball	2 Wire Leads	32 mm	48 VDC	0.66 in H2O	164.4 Pa
ORION FANS ODB1232-48HB	55 VDC	24 VDC	33 CFM	0.924 mł/min	Polybutylene Terephthalate (PBT)	2600 RPM	Square/Rounded	120 mm	120 mm	55 dB(A)	Blower	-20 ░C	70 °C	cURus TUV	Ball	2 Wire Leads	32 mm	48 VDC	0.92 in H2O	229.2 Pa	0.22 A
ORION FANS ODB1232-12HB	14 V	6 VDC	33 CFM	0.924 mł/min	Polybutylene Terephthalate (PBT)	2600 RPM	Square/Rounded	120 mm	120 mm	55 dB(A)	Blower	-20 ░C	70 °C		Ball	2 Wire Leads	32 mm	12 VDC	0.92 in H2O	229.2 Pa	0.79 A
ORION FANS ODB1232-24MB	28 V	12 VDC	28 CFM	0.784 m³/min	Polybutylene Terephthalate (PBT)	2300 RPM	Square/Rounded	120 mm	120 mm	49 dB	Blower	-20 ░C	70 °C		Ball	2 Wire Leads	32 mm	24 VDC	0.83 in H2O	206.7 Pa	360 mA
ORION FANS ODB1232-24LB	28 V	12 VDC	25 CFM	0.7 mł/min	Polybutylene Terephthalate (PBT)	2100 RPM	Square/Rounded	120 mm	120 mm	48 dB	Blower	-20 ░C	70 °C		Ball	2 Wire Leads	32 mm	24 VDC	0.66 in H2O	164.4 Pa	0.25 A
ORION FANS ODB1232-12LB	14 V	6 VDC	25 CFM	0.7 mł/min	Polybutylene Terephthalate (PBT)	2100 RPM	Square/Rounded	120 mm	120 mm	48 dB	Blower	-20 ░C	70 °C		Ball	2 Wire Leads	32 mm	12 VDC	0.66 in H2O	164.4 Pa	0.41 A
ORION FANS ODB1232-24HB	28 V	12 VDC	33 CFM	0.924 mł/min	Polybutylene Terephthalate (PBT)	2600 RPM	Square/Rounded	120 mm	120 mm	55 dB(A)	Blower	-20 ░C	70 °C		Ball	2 Wire Leads	32 mm	24 VDC	0.92 in H2O	229.2 Pa	430 mA
