1368589 Series

Catalog

CONN JACK 1PORT 1000 BASE-T PCB

Part	Applications	Number of Ports	Tab Direction	Connector Type	Number of Rows	Shielding	Height Above Board	Height Above Board	LED Color	Termination	Mounting Type	Number of Cores per Jack	Contact Material	Orientation	Features	Contact Finish	Operating Temperature [Max]	Shield Material	Housing Material	Contact Finish Thickness	Contact Finish Thickness
Bel Fuse Inc. 1368589-1	10/100/1000 Base-T AutoMDIX	1	Down	RJ45	1	Shielded	0.445 in	11.3 mm	Green Orange Yellow	Solder	Through Hole	8	Phosphor Bronze	90 °	Board Guide Decoupling Capacitance	Gold	70 °C

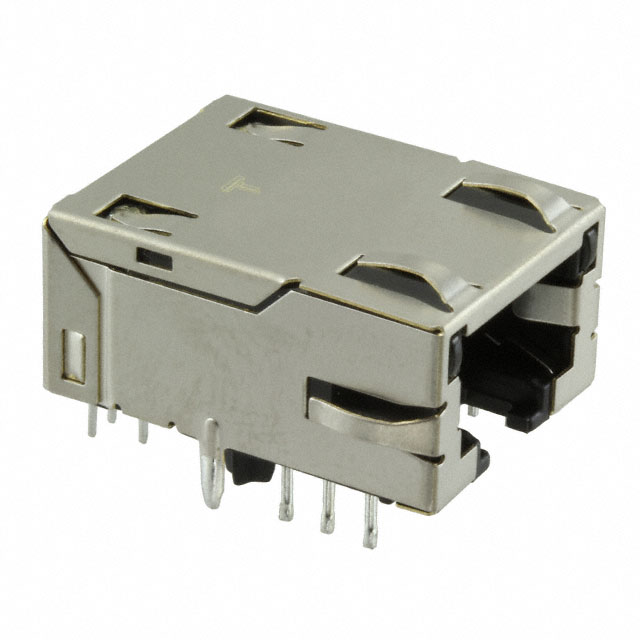

Bel Fuse Inc. 1368589-5	10/100/1000 Base-T AutoMDIX	1	Down	RJ45	1	EMI Finger Shielded	0.445 in	11.3 mm	Green Orange - Green	Solder	Through Hole	8	Phosphor Bronze	90 °	Board Guide Decoupling Capacitance	Gold	70 °C	Brass	Polyamide (PA) Nylon	30 Áin	0.76 Ám
Bel Fuse Inc. 1368589-8	10/100/1000 Base-T AutoMDIX	1	Down	RJ45	1	EMI Finger Shielded	0.445 in	11.3 mm	Green Orange Yellow	Solder	Through Hole	8	Phosphor Bronze	90 °	Board Guide Decoupling Capacitance	Gold	70 °C	Brass	Polyamide (PA) Nylon	30 Áin	0.76 Ám
Bel Fuse Inc. 1368589-5	10/100/1000 Base-T AutoMDIX	1	Down	RJ45	1	EMI Finger Shielded	0.445 in	11.3 mm	Green Orange - Green	Solder	Through Hole	8	Phosphor Bronze	90 °	Board Guide Decoupling Capacitance	Gold	70 °C
Bel Fuse Inc. 1368589-1	10/100/1000 Base-T AutoMDIX	1	Down	RJ45	1	Shielded	0.445 in	11.3 mm	Green Orange Yellow	Solder	Through Hole	8	Phosphor Bronze	90 °	Board Guide Decoupling Capacitance	Gold	70 °C	Brass	Polyamide (PA) Nylon	30 Áin	0.76 Ám
Bel Fuse Inc. 1368589-8	10/100/1000 Base-T AutoMDIX	1	Down	RJ45	1	EMI Finger Shielded	0.445 in	11.3 mm	Green Orange Yellow	Solder	Through Hole	8	Phosphor Bronze	90 °	Board Guide Decoupling Capacitance	Gold	70 °C
