RP08-A Series

Catalog

ISOLATED DC/DC CONVERTERS - SMD 8W DC/DC 1.6KV REG 2:1 18-36IN +/-15OUT

Part	Current - Output (Max) [Max]	Number of Outputs	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 2	Voltage - Isolation	Voltage - Input (Max) [Max]	Package / Case	Features	Voltage - Input (Min) [Min]	Efficiency	Voltage - Output 1	Control Features	Mounting Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Applications	Type	Current - Output (Max)

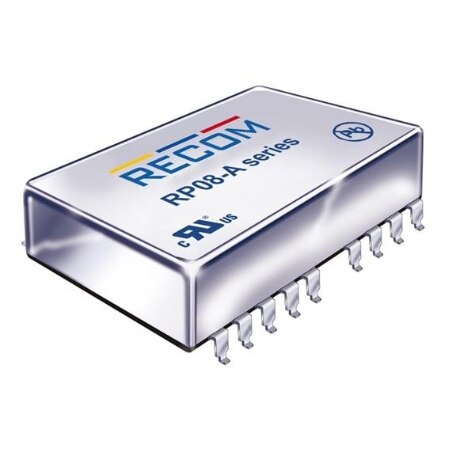

Recom Power RP08-2415DA/SMD	267 mA	2	8 W	85 °C	-40 C	-15 V	1.6 kV	36 V	24-SMD Module 18 Leads	OCP OVP Remote On/Off SCP	18 V	85 %	15 V	Active High Enable	Surface Mount	0.44 in	0.8 "	11.2 mm	1.26 in	20.3 mm	32 mm	ITE (Commercial)	Isolated Module
Recom Power RP08-2412SA	666 mA	1	8 W	85 °C	-40 C		1.6 kV	36 V	24-DIP Module 9 Leads	OCP OVP Remote On/Off SCP	18 V	86 %	12 V	Active High Enable	Through Hole	0.4 "	0.8 "	10.2 mm	1.25 in	20.3 mm	31.8 mm	ITE (Commercial)	Isolated Module
Recom Power RP08-1212SA/SMD	666 mA	1	8 W	85 °C	-40 C		1.6 kV	18 V	24-SMD Module 18 Leads	OCP OVP Remote On/Off SCP	9 V	88 %	12 V	Active High Enable	Surface Mount	0.44 in	0.8 "	11.2 mm	1.26 in	20.3 mm	32 mm	ITE (Commercial)	Isolated Module
Recom Power RP08-1215SA/SMD	533 mA	1	8 W	85 °C	-40 C		1.6 kV	18 V	24-SMD Module 18 Leads	OCP OVP Remote On/Off SCP	9 V	87 %	15 V	Active High Enable	Surface Mount	0.44 in	0.8 "	11.2 mm	1.26 in	20.3 mm	32 mm	ITE (Commercial)	Isolated Module
Recom Power RP08-1212DA/SMD		2	8 W	85 °C	-40 C	-12 V	1.6 kV	18 V	24-SMD Module 18 Leads	OCP OVP Remote On/Off SCP	9 V	87 %	12 V	Active High Enable	Surface Mount	0.44 in	0.8 "	11.2 mm	1.26 in	20.3 mm	32 mm	ITE (Commercial)	Isolated Module	333 mA
Recom Power RP08-4812DA/SMD		2	8 W	85 °C	-40 C	-12 V	1.6 kV	75 V	24-SMD Module 18 Leads	OCP OVP Remote On/Off SCP	36 V	87 %	12 V	Active High Enable	Surface Mount	0.44 in	0.8 "	11.2 mm	1.26 in	20.3 mm	32 mm	ITE (Commercial)	Isolated Module	333 mA
Recom Power RP08-2415SA	533 mA	1	8 W	85 °C	-40 C		1.6 kV	36 V	24-DIP Module 9 Leads	OCP OVP Remote On/Off SCP	18 V	85 %	15 V	Active High Enable	Through Hole	0.4 "	0.8 "	10.2 mm	1.25 in	20.3 mm	31.8 mm	ITE (Commercial)	Isolated Module
Recom Power RP08-243.3SA	2 A	1	8 W	85 °C	-40 C		1.6 kV	36 V	24-DIP Module 9 Leads	OCP OVP Remote On/Off SCP	18 V	80 %	3.3 V	Active High Enable	Through Hole	0.4 "	0.8 "	10.2 mm	1.25 in	20.3 mm	31.8 mm	ITE (Commercial)	Isolated Module
Recom Power RP08-1205SA/SMD	1.5 A	1	8 W	85 °C	-40 C		1.6 kV	18 V	24-SMD Module 18 Leads	OCP OVP Remote On/Off SCP	9 V	83 %	5 V	Active High Enable	Surface Mount	0.44 in	0.8 "	11.2 mm	1.26 in	20.3 mm	32 mm	ITE (Commercial)	Isolated Module
Recom Power RP08-2412SA/SMD	666 mA	1	8 W	85 °C	-40 C		1.6 kV	36 V	24-SMD Module 18 Leads	OCP OVP Remote On/Off SCP	18 V	86 %	12 V	Active High Enable	Surface Mount	0.44 in	0.8 "	11.2 mm	1.26 in	20.3 mm	32 mm	ITE (Commercial)	Isolated Module
