LSCN Series

Catalog

POWER INDUCTORS - SMD 0.24UH 0603 20% HI CURR

Part	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR)	Package / Case	Package / Case	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Type	Material - Core	Shielding	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Inductance	Current Rating (Amps)	Inductance Frequency - Test	Tolerance	Current - Saturation (Isat)	Supplier Device Package	Size / Dimension [y]	Height - Seated (Max)	DC Resistance (DCR) [Max]

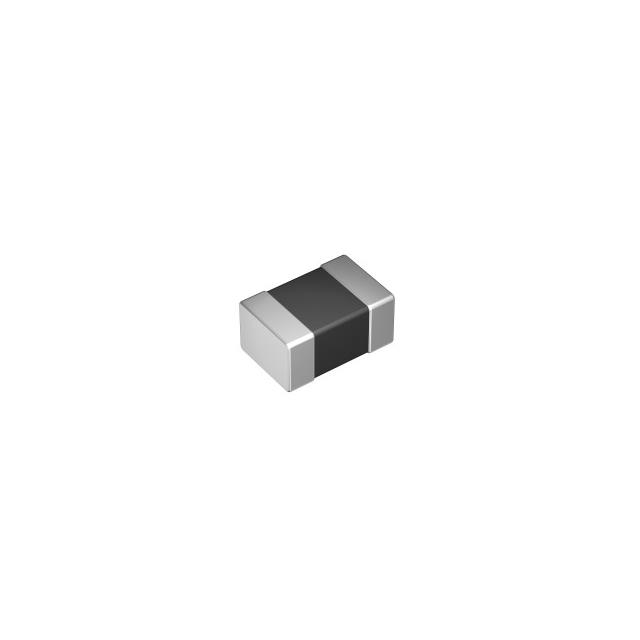

Taiyo Yuden LSCNE1608FETR24MA	125 °C	-40 C	100 mOhm	1608 Metric	0603	Surface Mount	0.026 in	0.65 mm	Multilayer	Metal	Unshielded	0.031 in	1.6 mm	0.8 mm	0.063 "	240 nH	1.5 A	1 MHz	20 %	2.6 A
Taiyo Yuden LSCNE2012HKTR47MD	125 °C	-40 C	32 mOhm		0805	Surface Mount	0.031 in		Multilayer	Metal	Unshielded	0.049 "	2 mm		0.079 in	470 nH	4 A	1 MHz	20 %	4.8 A	0805	1.25 mm	0.8 mm
Taiyo Yuden LSCNB1210EKT1R0MB	125 °C	-40 C			0504 (1210 Metric)	Surface Mount	0.02 in		Multilayer	Metal	Unshielded	0.041 in	1.25 mm		0.049 in	1 µH	1.1 A	1 MHz	20 %		0504	1.05 mm	0.5 mm	179 mOhm
Taiyo Yuden LSCNB1005EETR22MB	125 °C	-40 C			0402 (1005 Metric)	Surface Mount	0.022 in	0.55 mm	Multilayer	Metal	Unshielded	0.02 in	1 mm		0.039 "	220 nH	1.6 A	1 MHz	20 %	1.6 A	0402	0.5 mm		80 mOhm
Taiyo Yuden LSCNB1210EKTR47MB	125 °C	-40 C	82 mOhm		0504 (1210 Metric)	Surface Mount	0.02 in		Multilayer	Metal	Unshielded	0.041 in	1.25 mm		0.049 in	470 nH	1.6 A	1 MHz	20 %	2.3 A	0504	1.05 mm	0.5 mm
