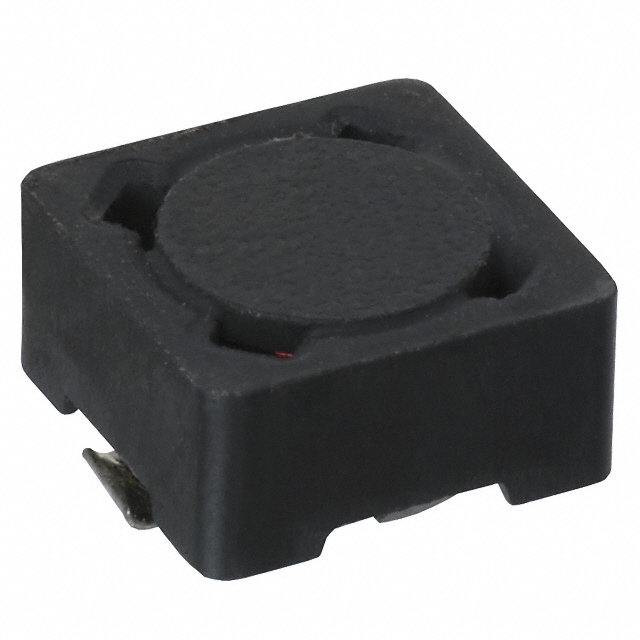

P1167 Series

Power Inductors - SMD 10uH 20%

Manufacturer: Pulse Electronics

Catalog

Power Inductors - SMD 10uH 20%

Catalog

Power Inductors - SMD 10uH 20%

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Inductance Frequency - Test	Package / Case	Tolerance	Frequency - Self Resonant	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Shielding	Inductance	Current Rating (Amps)	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	DC Resistance (DCR) [Max]	Current - Saturation (Isat)
Pulse Electronics P1167.183NLT	7.54 mm	0.297 in	7.54 mm	0.297 in	100 kHz	Nonstandard	20 %	18 MHz	130 °C	-40 C	Surface Mount	Shielded	18 µH	1.5 A	Wirewound	4.5 mm	0.177 in	73 mOhm
Pulse Electronics P1167.272NLT	7.54 mm	0.297 in	7.54 mm	0.297 in	100 kHz	Nonstandard	30 %	40 MHz	130 °C	-40 C	Surface Mount	Shielded	2.7 µH	3.5 A	Wirewound	4.5 mm	0.177 in	16 mOhm	3.5 A
Pulse Electronics P1167.103NLT	7.54 mm	0.297 in	7.54 mm	0.297 in	100 kHz	Nonstandard	20 %	26 MHz	130 °C	-40 C	Surface Mount	Shielded	10 µH	2 A	Wirewound	4.5 mm	0.177 in	50 mOhm	2.1 A
Pulse Electronics P1167.823NLT	7.54 mm	0.297 in	7.54 mm	0.297 in	100 kHz	Nonstandard	20 %	8 MHz	130 °C	-40 C	Surface Mount	Shielded	82 µH	700 mA	Wirewound	4.5 mm	0.177 in	350 mOhm	700 mA
