JS1F-F Series

Catalog

RELAY

Part	Coil Resistance	Coil Type	Seal Rating	Operating Temperature [Min]	Operating Temperature [Max]	Must Release Voltage	Switching Voltage [Max]	Relay Type	Coil Current	Contact Rating (Current)	Contact Material	Must Operate Voltage	Approval Agency	Mounting Type	Termination Style	Coil Voltage	Release Time	Operate Time	Contact Form	Load - Max Switching	Coil Insulation
Panasonic Electronic Components JS1F-F-18V-F-6K	900 Ohms	Non Latching	Sealed - Flux Protection	-40 C	105 ░C	1.8 VDC	100 VDC 250 VAC	General Purpose	0.02 A	10 A	Silver Tin Oxide (AgSnO)	12.6 VDC	CSA TUV UR VDE	Through Hole	PC Pin	18 VDC	10 ms	10 ms	SPDT (1 Form C)	1000 W 2500 VA	Class F
Panasonic Electronic Components JS1F-F-5V-F-6K	69.4 Ohms	Non Latching	Sealed - Flux Protection	-40 C	105 ░C	0.5 VDC	100 VDC 250 VAC	General Purpose	72 mA	10 A	Silver Tin Oxide (AgSnO)	3.5 VDC	CSA TUV UR VDE	Through Hole	PC Pin	5 VDC	10 ms	10 ms	SPDT (1 Form C)	1000 W 2500 VA	Class F
Panasonic Electronic Components JS1F-F-18V-F	900 Ohms	Non Latching	Sealed - Flux Protection	-40 C	105 ░C	1.8 VDC	100 VDC 250 VAC	General Purpose	0.02 A	10 A	Silver Tin Oxide (AgSnO)	12.6 VDC	CSA TUV UR VDE	Through Hole	PC Pin	18 VDC	10 ms	10 ms	SPDT (1 Form C)	1000 W 2500 VA	Class F

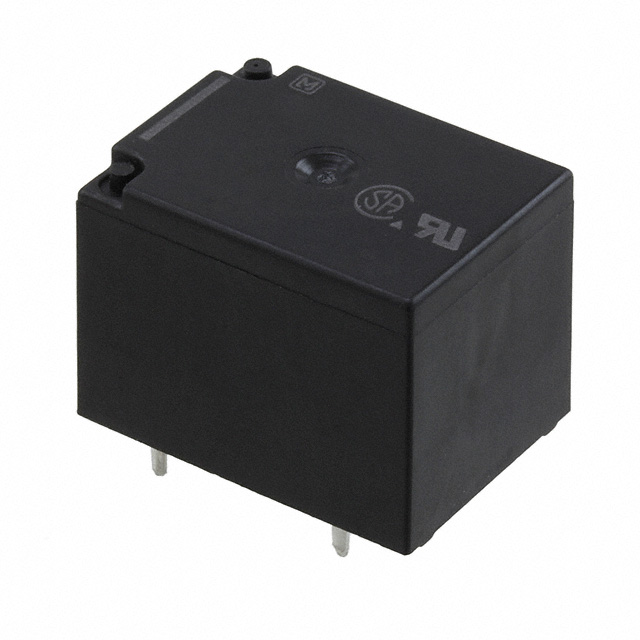

Panasonic Electronic Components JS1F-F-24V-F	1.6 kOhms	Non Latching	Sealed - Flux Protection	-40 C	105 ░C	2.4 VDC	100 VDC 250 VAC	General Purpose	0.015 A	10 A	Silver Tin Oxide (AgSnO)	16.8 VDC	CSA TUV UR VDE	Through Hole	PC Pin	24 VDC	10 ms	10 ms	SPDT (1 Form C)	1000 W 2500 VA	Class F
