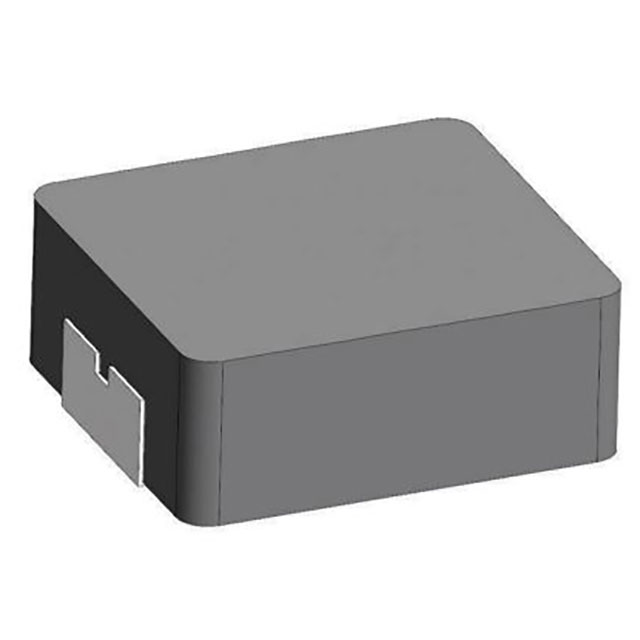

AMDLA7030S Series
Manufacturer: Abracon LLC
Beta
⌘K
POWER INDUCTORS - SMD IND 4.70 UH 5.000 A 33.00 MOHM
| Part | Mounting Type | Package / Case | Tolerance | Current Rating (Amps) | Material - Core | Inductance Frequency - Test | DC Resistance (DCR) | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Current - Saturation (Isat) | Type | Inductance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Abracon LLC | Surface Mount | Nonstandard | 20 % | 5 A | Metal | 100 kHz | 33 mOhm | 155 C | -55 C | Shielded | 5.5 A | Molded | 4.7 ÁH | 0.118 " | 3 mm | |
 Abracon LLC | Surface Mount | Nonstandard | 20 % | 21 A | Metal | 100 kHz | 155 C | -55 C | Shielded | 32 A | Molded | 220 nH | 0.118 " | 3 mm | 2.5 mOhm | |
Abracon LLC | Surface Mount | Nonstandard | 20 % | 4 A | Metal | 100 kHz | 155 C | -55 C | Shielded | 4.7 A | Molded | 8.2 µH | 0.118 " | 3 mm | ||
Abracon LLC | Surface Mount | Nonstandard | 20 % | 5 A | Metal | 100 kHz | 155 C | -55 C | Shielded | 5.2 A | Molded | 5.6 µH | 0.118 " | 3 mm | 42 mOhm |
