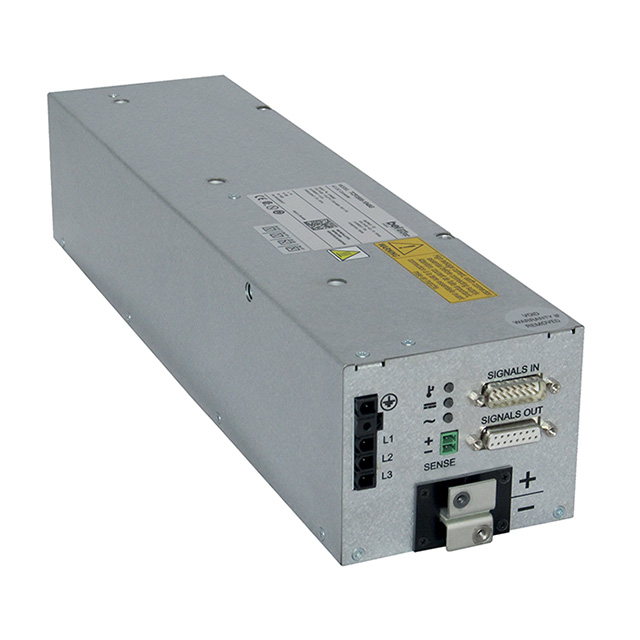

TCP3500 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K
SWITCHING POWER SUPPLIES POWER SUPPLY
| Part | Power (Watts) | Voltage - Output 1 | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output 1 | Features | Applications | Mounting Type | Voltage - Isolation | Efficiency | Number of Outputs | Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Output 1 [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | 3.5 kW | 48 V | -25 °C | 70 °C | 73 A | Adjustable Output Baseplate IP20 Load Sharing PFC Remote On/Off Remote Sense Universal Input | ITE (Commercial) | Rack Mount | 3000 V | 94 % | 1 | Front End | 103 mm | 400.6 mm | 15.77 " | 84.6 mm | 3.33 in | 4.06 in | |
Bel Fuse Inc. | 3.5 kW | -25 °C | 70 °C | 65 A | Adjustable Output Baseplate IP20 Load Sharing PFC Remote On/Off Remote Sense Universal Input | ITE (Commercial) | Rack Mount | 3000 V | 94 % | 1 | Front End | 103 mm | 400.6 mm | 15.77 " | 84.6 mm | 3.33 in | 4.06 in | 60 V | |
Bel Fuse Inc. | 3.5 kW | 48 V | -40 C | 85 °C | 73 A | Adjustable Output Baseplate IP20 Load Sharing PFC Remote On/Off Remote Sense Universal Input | ITE (Commercial) | Rack Mount | 3000 V | 94 % | 1 | Front End | 103 mm | 400.6 mm | 15.77 " | 84.6 mm | 3.33 in | 4.06 in | |
Bel Fuse Inc. | 3480 W | 24 V | -25 °C | 70 °C | 145 A | Adjustable Output Baseplate IP20 Load Sharing PFC Remote On/Off Universal Input | ITE (Commercial) | Rack Mount | 3000 V | 94 % | 1 | Front End | 103 mm | 400.6 mm | 15.77 " | 84.6 mm | 3.33 in | 4.06 in |
